TCM And Start Stop Unit Connector End View

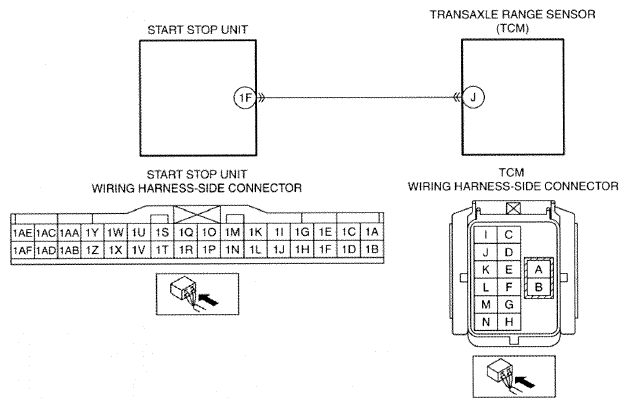

Fig 1: TCM And Start Stop Unit Connector End View

G09771879

Courtesy of MAZDA MOTORS CORP.
