Starter Interlock Switch Connector End View

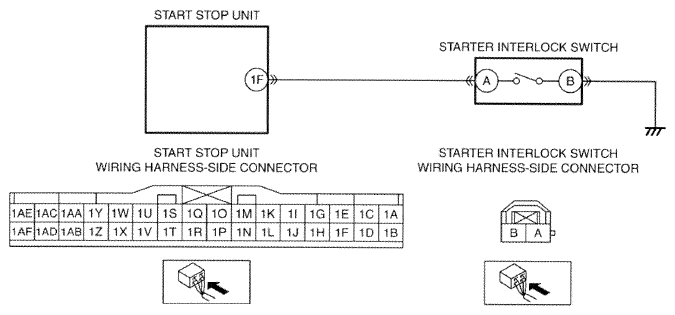

Fig 1: Starter Interlock Switch Connector End View
G09771882Courtesy of MAZDA MOTORS CORP.


Fig 1: Starter Interlock Switch Connector End View
G09782867Courtesy of MAZDA MOTORS CORP.
