Rear Window Defroster Relay Connector End View

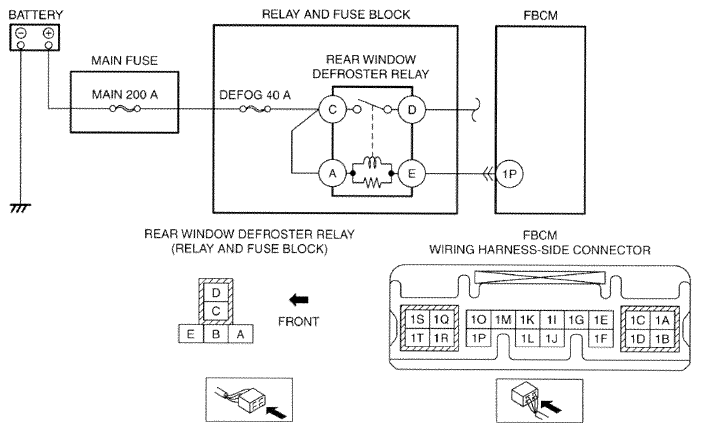

Fig 1: Rear Window Defroster Relay Connector End View

G09771804

Courtesy of MAZDA MOTORS CORP.
