MAP Sensor/IAT Sensor No. 2 Connector End View

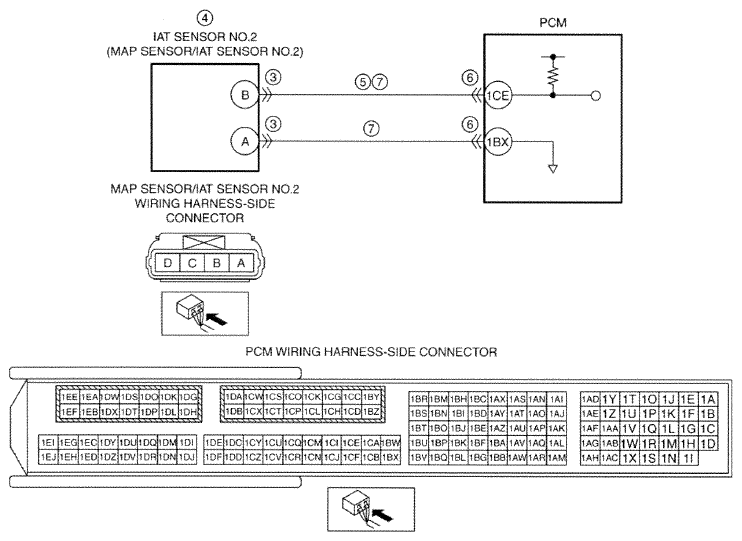

Fig 1: MAP Sensor/IAT Sensor No. 2 Connector End View

G09794646

Courtesy of MAZDA MOTORS CORP.
