FBCM And Start Stop Unit Connector End View

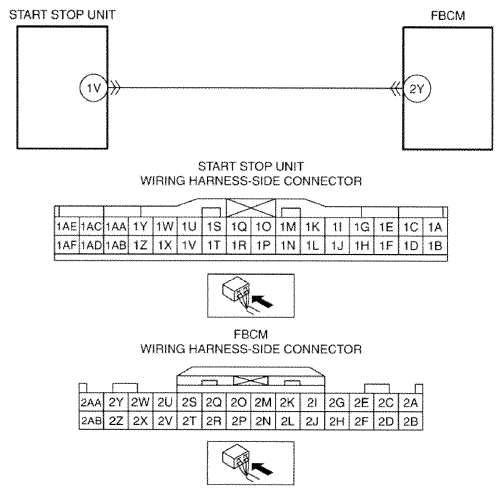

Fig 1: FBCM And Start Stop Unit Connector End View
G09771785Courtesy of MAZDA MOTORS CORP.


Fig 1: FBCM And Start Stop Unit Connector End View
G09794709Courtesy of MAZDA MOTORS CORP.
