Driver-Side Crash Zone Sensor Connector End View

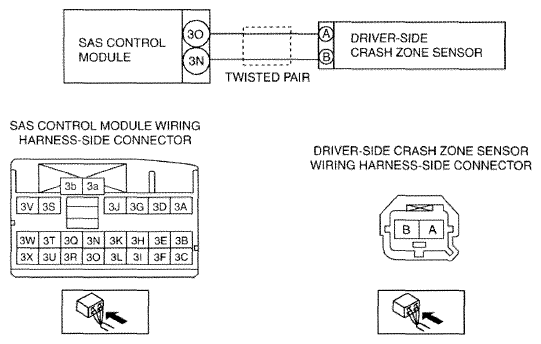

Fig 1: Driver-Side Crash Zone Sensor Connector End View

G09783462

Courtesy of MAZDA MOTORS CORP.
