Discharge Headlight System Connector End View

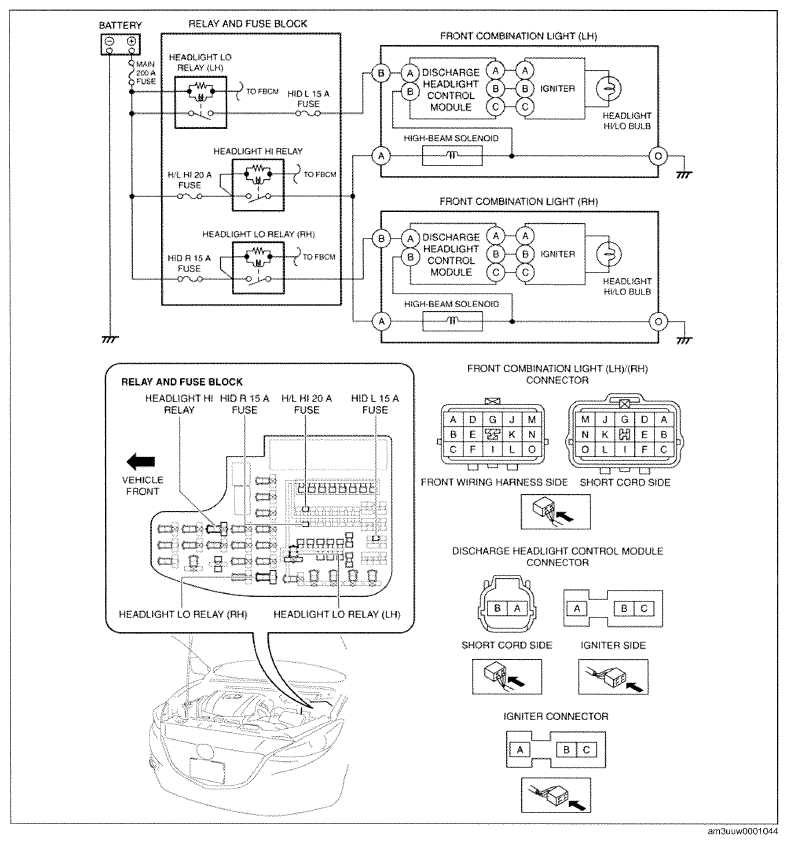

Fig 1: Discharge Headlight System Connector End View

G09772439

Courtesy of MAZDA MOTORS CORP.
