Audio Unit And CD Player Connector End View

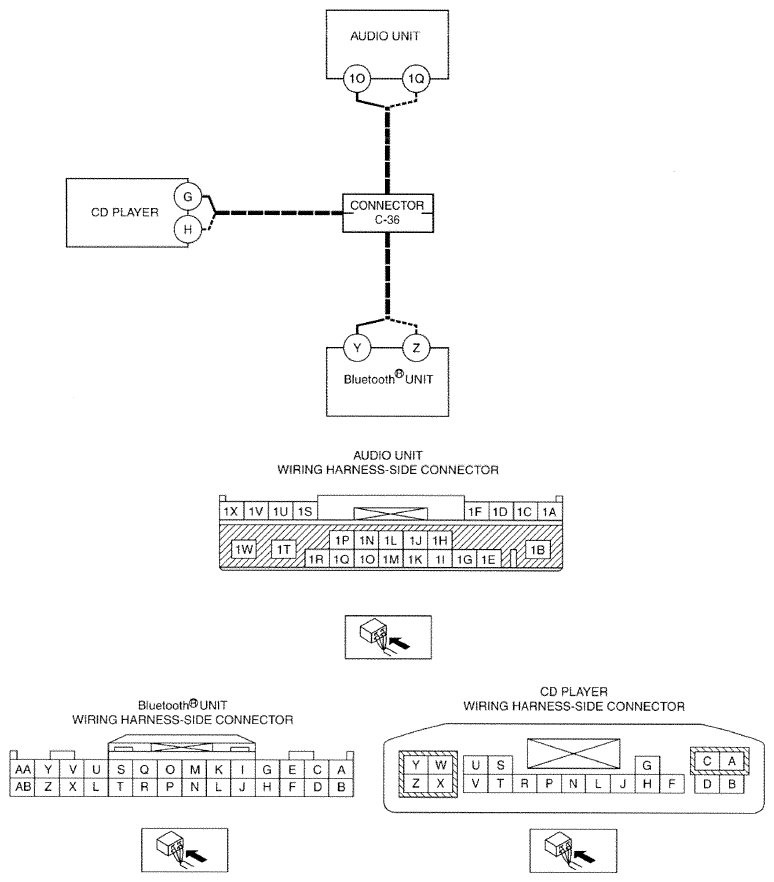

Fig 1: Audio Unit And CD Player Connector End View

G09783515

Courtesy of MAZDA MOTORS CORP.
