SUNVISOR Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove screw A.
  3. Remove the sunvisor in the direction of the arrow (1) shown in the figure while detaching hook B.

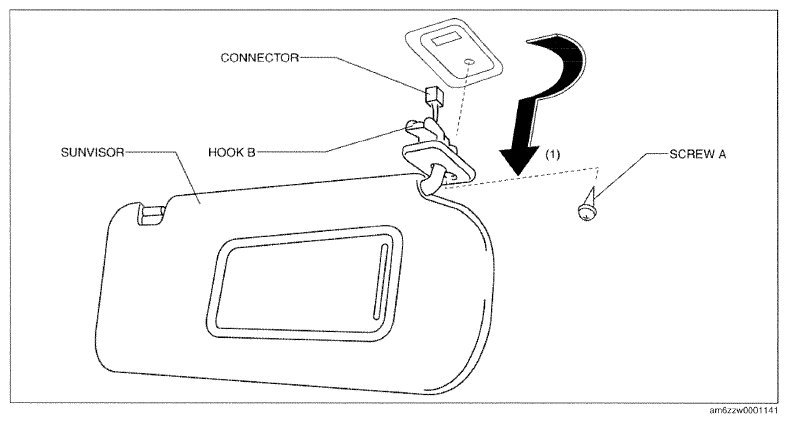

    Fig 1: Removing Sunvisor
    G09772391Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the vanity mirror illumination connector (with vanity mirror illumination).
  5. Press the center adaptor tabs in the direction of the arrow (2) shown in the figure using two remover tool.

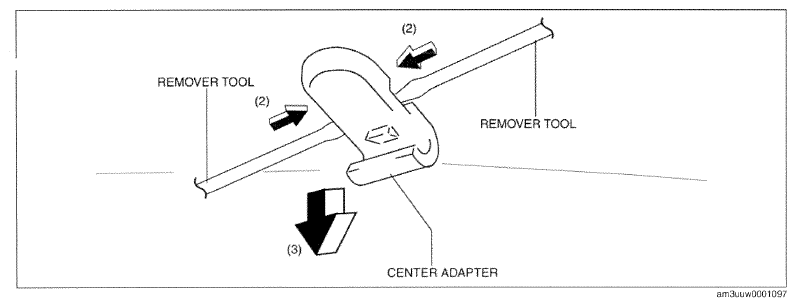

    Fig 2: Pressing Center Adaptor Tabs
    G09772392Courtesy of MAZDA MOTORS CORP.
  6. Remove the center adaptor in the direction of the arrow (3) shown in the figure.
  7. Install in the reverse order of removal.
