Side Panel Removal Note

  1. Move the side panel in the order of arrows (1) and (2) shown in the figure and remove the guide from the rear console box.

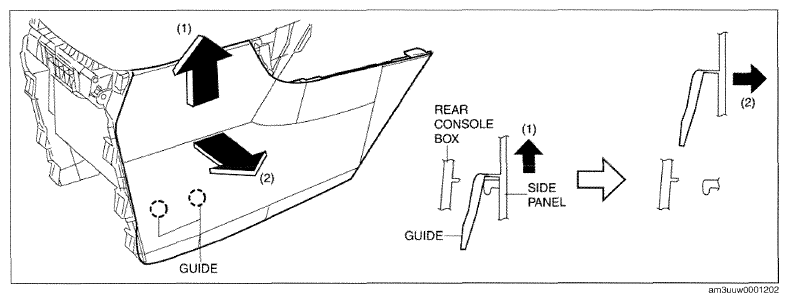

    Fig 1: Removing Guide From Rear Console Box
    G09772304Courtesy of MAZDA MOTORS CORP.
