Rear Splash Shield

  1. Remove the screws, fasteners and cap nut shown the figure.

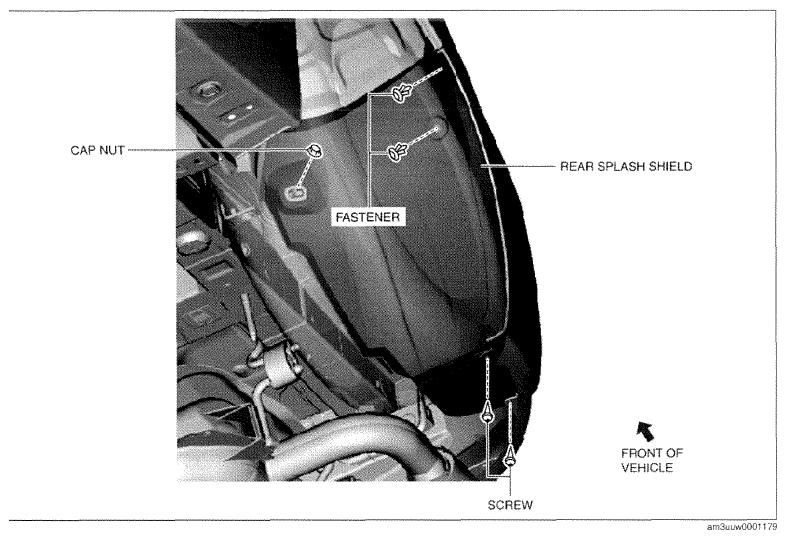

    Fig 1: Removing Rear Splash Shield No. 2 Fasteners
    G09772161Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear splash shield.
  3. Install in the reverse order of removal.
