Side Spoiler Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear spoiler. (See REAR SPOILER REMOVAL .)
  4. Insert a remover tool into the position shown in the figure, move it in the direction of the arrow shown in the figure, and remove the side spoiler from the rear spoiler.

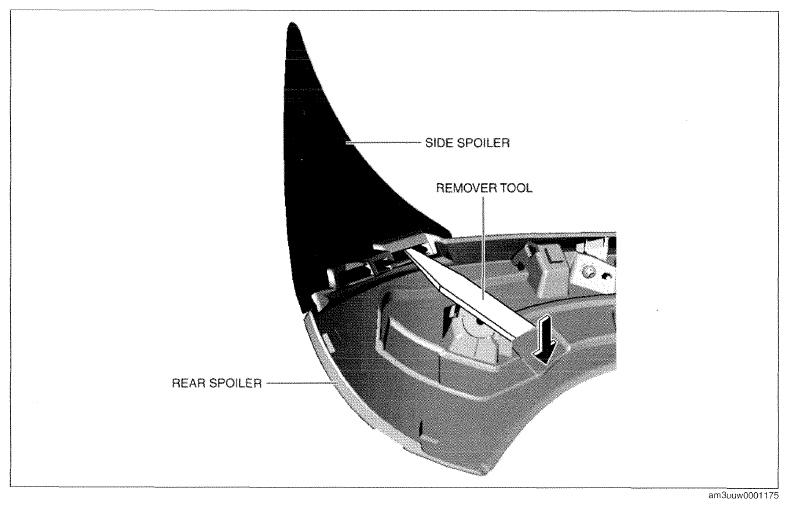

    Fig 1: Removing Side Spoiler From Rear Spoiler
    G09772145Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
