Extractor Chamber Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
    2. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
    3. Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)
  3. Insert a remover tool in the position shown in the figure.

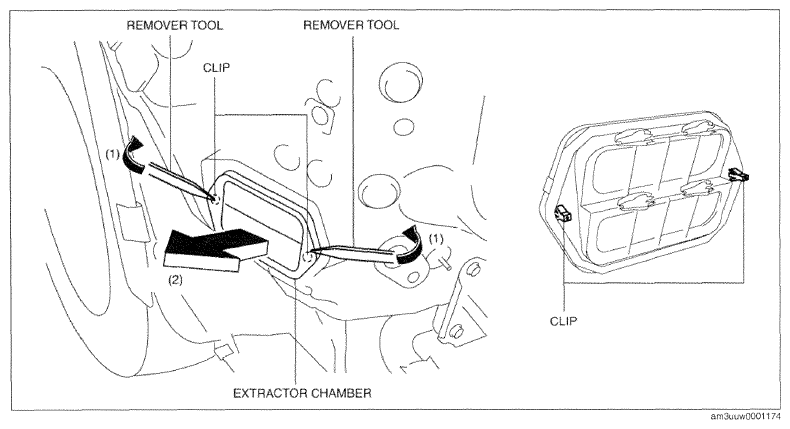

    Fig 1: Removing Extractor Chamber
    G09772098Courtesy of MAZDA MOTORS CORP.
  4. Move the remover tool in the direction of arrow (1) shown in the figure and detach the extractor chamber from the body.
  5. Remove the extractor chamber in the direction of arrow (2) shown in the figure.
  6. Install in the reverse order of removal.
