Liftgate Latch And Lock Actuator Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    4. Litigate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

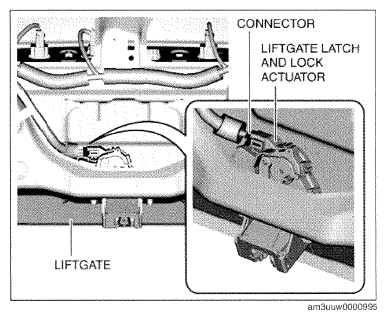

    Fig 1: Identifying Liftgate Latch And Lock Actuator Connector
    G09772013Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.

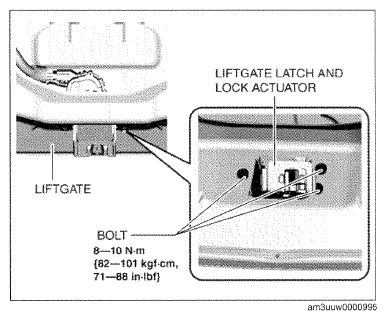

    Fig 2: Removing Bolts With Torque Specifications
    G09772014Courtesy of MAZDA MOTORS CORP.
  5. Remove the liftgate latch and lock actuator from the liftgate.
  6. Install in the reverse order of removal.
    Fig 3: Removing Liftgate Latch And Lock Actuator From Liftgate
    G09772015Courtesy of MAZDA MOTORS CORP.
