Front Door Latch Switch Inspection: RH

Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
2. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
4. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
5. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

Fig 1: Door Latch Switch Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the front door latch and lock actuator.

  Fig 2: Door Latch Switch Circuit Diagram
  Courtesy of MAZDA MOTORS CORP.
  NOTE:

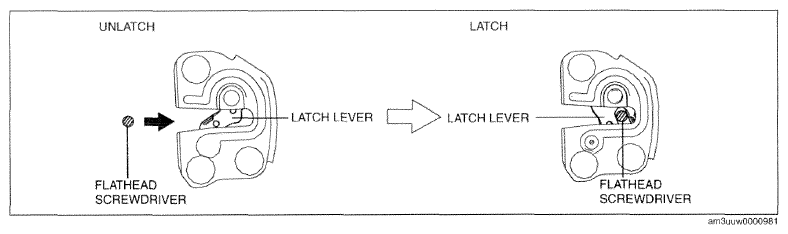

  - When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
  Fig 3: Pressing Latch Lever
  Courtesy of MAZDA MOTORS CORP.
