Windshield Washer Nozzle Adjustment
CAUTION:
- Do not insert objects into the injection nozzle when adjusting the nozzle. If the nozzle is adjusted by inserting a stick-like object into the nozzle, it could deform the injection nozzle and the washer fluid may not spray normally.

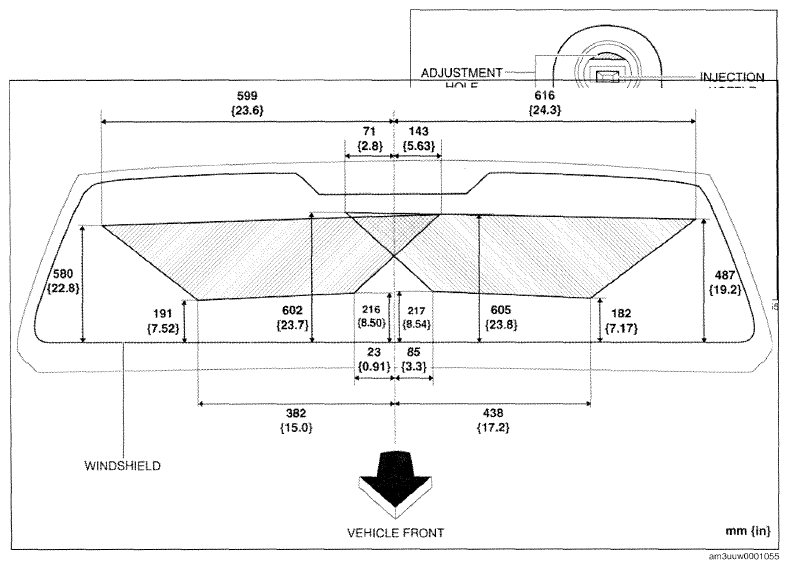

- Insert the remover tool into the adjustment holes of the windshield washer nozzle and adjust the area where washer fluid is sprayed as shown in the figure.
