Windshield Washer Hose A: Notes

  1. Remove the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
  2. Disconnect windshield washer hose A from the washer motor.

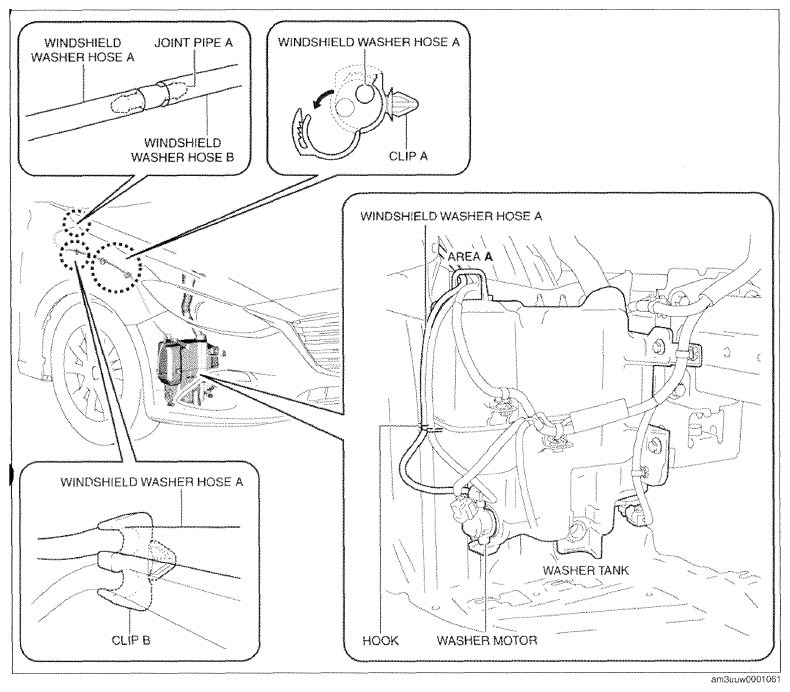

    Fig 1: Identifying Windshield Washer Hose Components
    G09784096Courtesy of MAZDA MOTORS CORP.
  3. Remove windshield washer hose A from the washer tank hook. (See WINDSHIELD WASHER HOSE A INSTALLATION NOTE .)
  4. Pull out windshield washer hose A from area A of the washer tank.
  5. Remove windshield washer hose A from clips A and B.
  6. Disconnect windshield washer hose B from joint pipe A.
  7. Remove windshield washer hose A.
  8. Install in the reverse order of removal.
