Trunk Lid Light Removal/Installation

NOTE:
  • Fogging or condensation may occur on the inside of the trunk lid light because of a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the trunk lid light. However, it has no effect on the light performance because the phenomenon is resolved when temperature inside the trunk lid light rises after the back-up light turns on or a period of time has elapsed.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Partially peel back the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

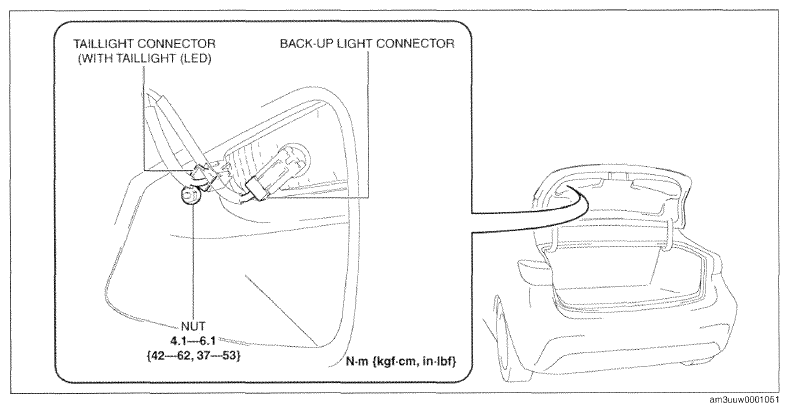

    Fig 1: Connector Of Trunk Lid Light With Torque Specifications
    G09772501Courtesy of MAZDA MOTORS CORP.
  4. Remove the nut.
  5. Insert the remover tool into the service hole at the position shown in the figure.

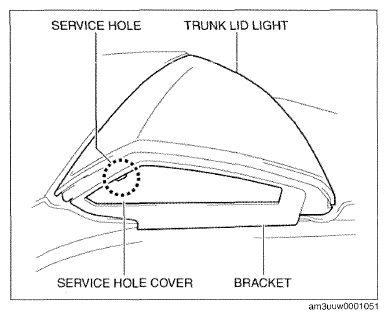

    Fig 2: Inserting Remover Tool Into Service Hole At Position
    G09772502Courtesy of MAZDA MOTORS CORP.
  6. Move the remover tool in the direction of arrow (1) shown in the figure to detach the tab of the service hole cover from the bracket.

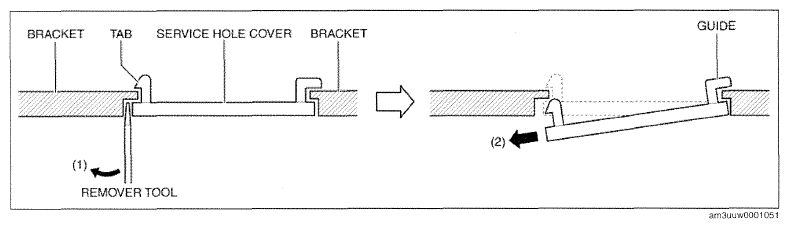

    Fig 3: Detaching Tab Of Service Hole Cover From Bracket
    G09772503Courtesy of MAZDA MOTORS CORP.
  7. Pull the guide of the service hole cover in the direction of arrow (2) shown in the figure and remove the service hole cover.
  8. Insert the remover tool into the gap between tab (1) of the bracket and the trunk lid light.

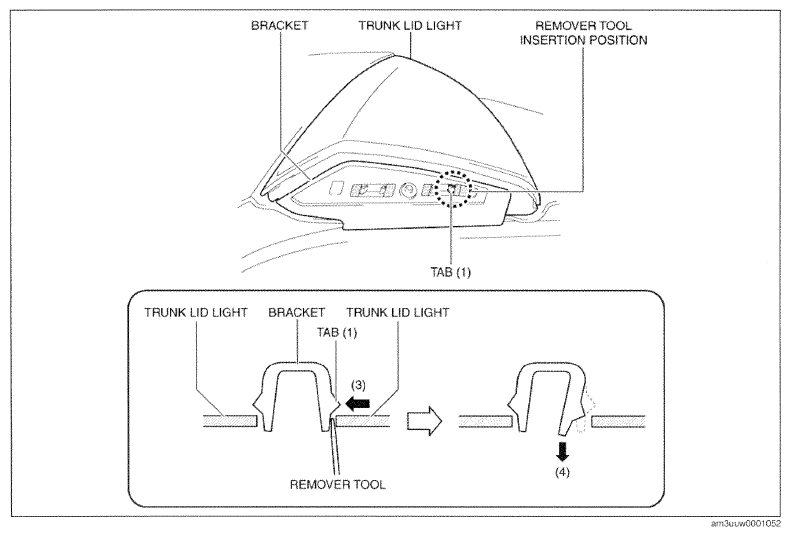

    Fig 4: Identifying Gap Between Tab (1) Of Bracket And Trunk Lid Light
    G09772504Courtesy of MAZDA MOTORS CORP.
  9. While pressing tab (1) of the bracket in the direction of arrow (3) shown in the figure using the remover tool, pull the bracket in the direction of arrow (4) to detach tab (1) of the bracket from the trunk lid light.
  10. Insert the remover tool into the gap between tab (2) of the bracket and the trunk lid light.
    Fig 5: Identifying Gap Between Tab (2) Of Bracket And Trunk Lid Light
    G09772504Courtesy of MAZDA MOTORS CORP.
  11. While pressing tab (2) of the bracket in the direction of arrow (5) shown in the figure using the remover tool, pull the bracket in the direction of arrow (6) to detach tab (2) of the bracket from the trunk lid light.
  12. Insert the remover tool into the gap between tab (3) of the bracket and the trunk lid light.
    Fig 6: Identifying Gap Between Tab (3) Of Bracket And Trunk Lid Light
    G09772504Courtesy of MAZDA MOTORS CORP.
  13. While pressing tab (3) of the bracket in the direction of arrow (7) shown in the figure using the remover tool, pull the bracket in the direction of arrow (8) to detach tab (3) of the bracket from the trunk lid light.
  14. Insert the remover tool into the gap between tab (4) of the bracket and the trunk lid light.

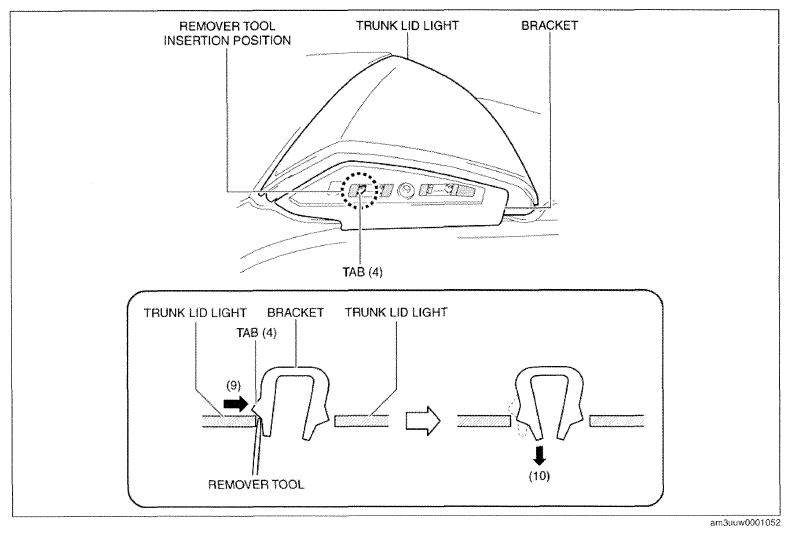

    Fig 7: Identifying Gap Between Tab (4) Of Bracket And Trunk Lid Light
    G09772507Courtesy of MAZDA MOTORS CORP.
  15. While pressing tab (4) of the bracket in the direction of arrow (9) shown in the figure using the remover tool, pull the bracket in the direction of arrow (10) to detach tab (4) of the bracket from the trunk lid light.
  16. Detach all the tabs of the bracket from the trunk lid light and remove the bracket from the trunk lid light.
  17. To prevent scratches or damage, affix protective tape to the position shown in the figure.
    CAUTION:
    • When removing the trunk lid light from the trunk lid, the trunk lid light could contact the trunk lid and damage it. Apply protective tape to the trunk lid before removing the trunk lid light from the trunk lid.

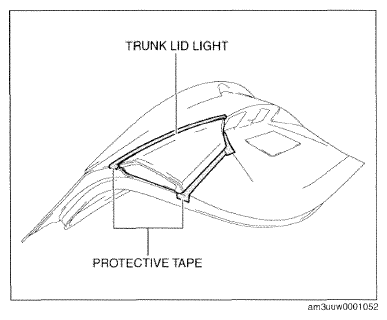

    Fig 8: Identifying Trunk Lid Light And Protective Tape
    G09772508Courtesy of MAZDA MOTORS CORP.
  18. Pull the trunk lid light in the direction of the arrow shown in the figure and pull out the guides, pin and stud bolt from the trunk lid.

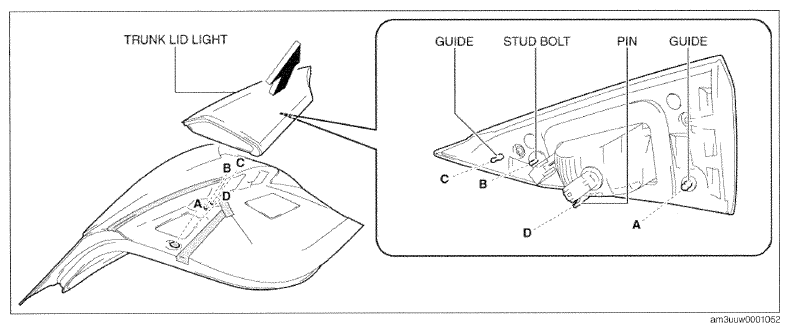

    Fig 9: Pulling Out Trunk Lid Light
    G09772509Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When removing the trunk lid light from the trunk lid, the trunk lid light could fall off and be damaged. When removing the trunk lid light from the trunk lid, hold the trunk lid light on the lens side with a hand.
  19. Remove the trunk lid light.
  20. While pressing tabs of grommet A in the direction of arrow (11) shown in the figure, push out grommet A in the direction of arrow (12) to remove grommet A from the trunk lid.

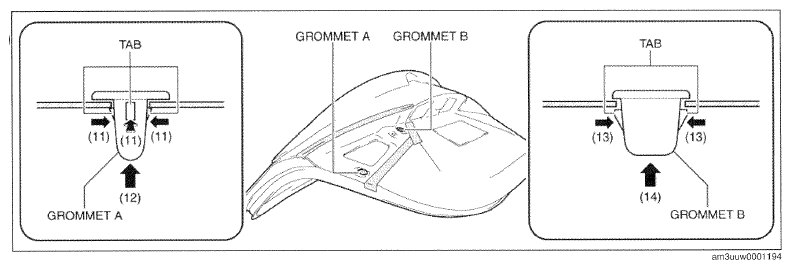

    Fig 10: Removing Grommet A From Trunk Lid
    G09772510Courtesy of MAZDA MOTORS CORP.
  21. While pressing tabs of grommet B in the direction of arrow (13) shown in the figure, push out grommet B in the direction of arrow (14) to remove grommet B from the trunk lid.
  22. Install in the reverse order of removal.
