Grommet Installation Note

  1. Install the grommet with the arrow pointed outward of the vehicle.

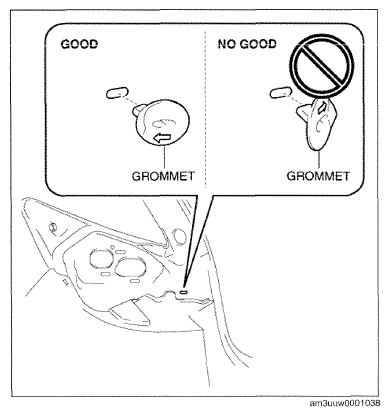

    Fig 1: Precaution For Grommet Proper And Improper Position
    G09772483Courtesy of MAZDA MOTORS CORP.
