DRL System (Except Canada Specs.)

DRL SYSTEM DESCRIPTION (EXCEPT CANADA SPECS)

Function	Initial setting	Setting contents	Control module
The DRL system function can be set.	On (DRL illumination)	Off (DRL non-illumination)/On (DRL illumination)	Front body control module (FBCM)

Perform the following procedure to change the DRL illumination/non-illumination setting.
NOTE:
- Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.

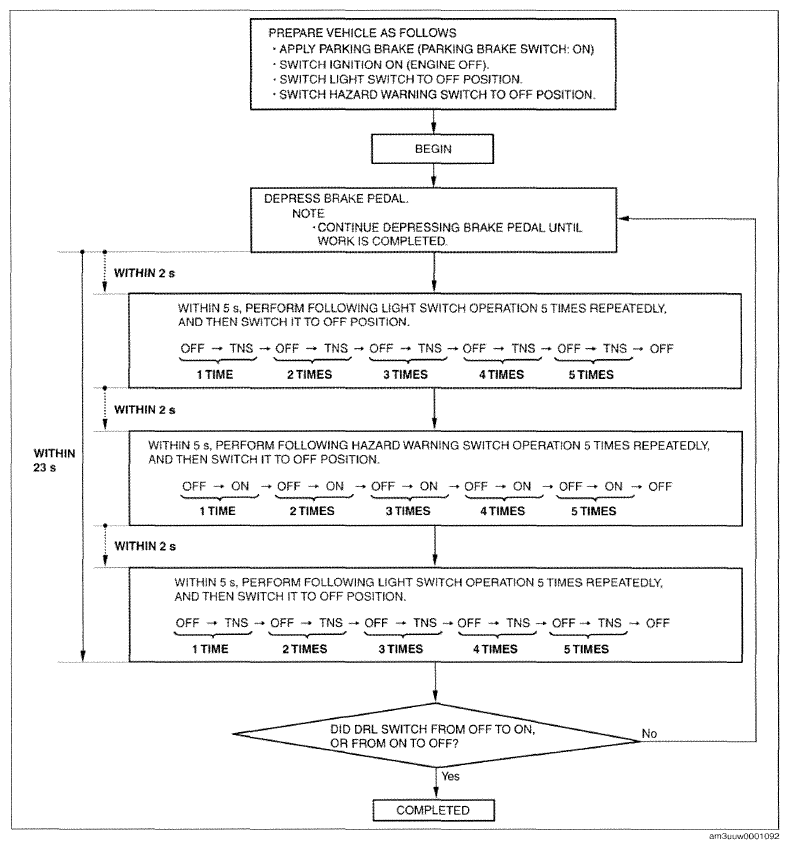

Fig 1: DRL System Procedure Chart
Courtesy of MAZDA MOTORS CORP.
