3 SV, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Headlights
>>
Lighting System
>>
Light Switch Inspection
>>
Light Switch
>>
Without auto light system
Without auto light system

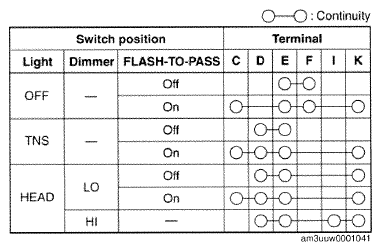

Fig 1: Light Switch Continuity Reference Chart (Without Auto Light System)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying Light Switch Connector Terminals (Without Auto Light System)
Courtesy of MAZDA MOTORS CORP.
