3 SV, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Headlights
>>
Lighting System
>>
Light Switch Inspection
>>
Light Switch
>>
With auto light system
With auto light system

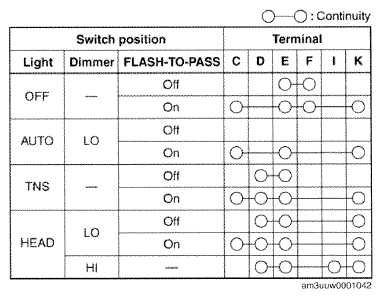

Fig 1: Light Switch Continuity Reference Chart (With Auto Light System)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying Light Switch Connector Terminals (With Auto Light System)
Courtesy of MAZDA MOTORS CORP.
If not as indicated in the table, replace the light switch. (See
LIGHT SWITCH REMOVAL/INSTALLATION
.)
