Cd Player Installation

  1. Connect the connector.
  2. Install the CD player.
  3. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)

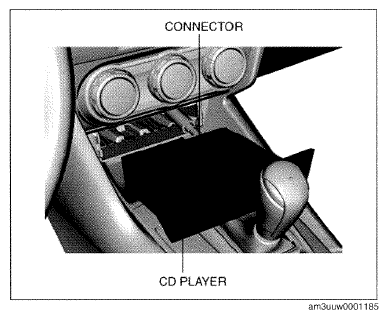

    Fig 1: Installing CD Player
    G09784164Courtesy of MAZDA MOTORS CORP.
