BSM Control Module Connector End View

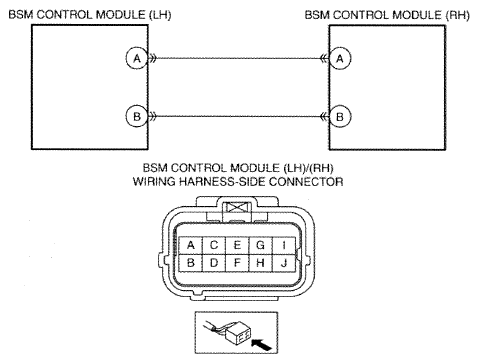

Fig 1: BSM Control Module Connector End View

G09783542

Courtesy of MAZDA MOTORS CORP.
