Intake CMP Sensor Connector End View

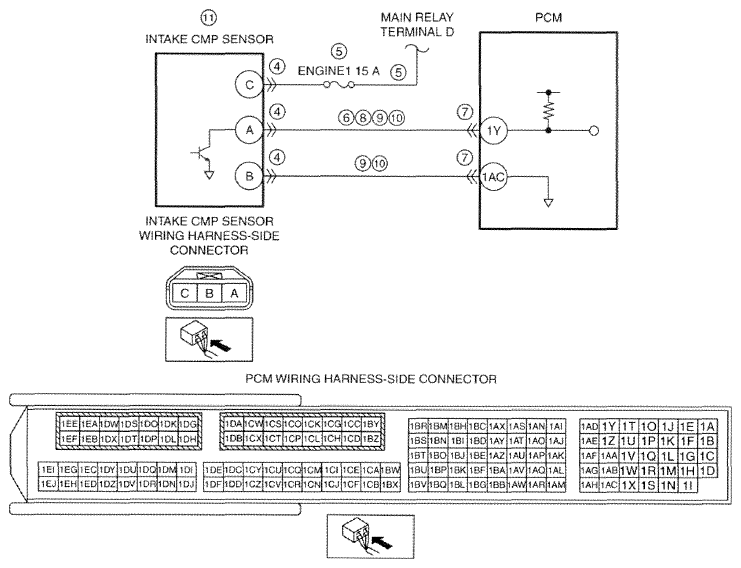

Fig 1: Intake CMP Sensor Connector End View

G09794688

Courtesy of MAZDA MOTORS CORP.
