FBCM (Front Body Control Module) Connector End View

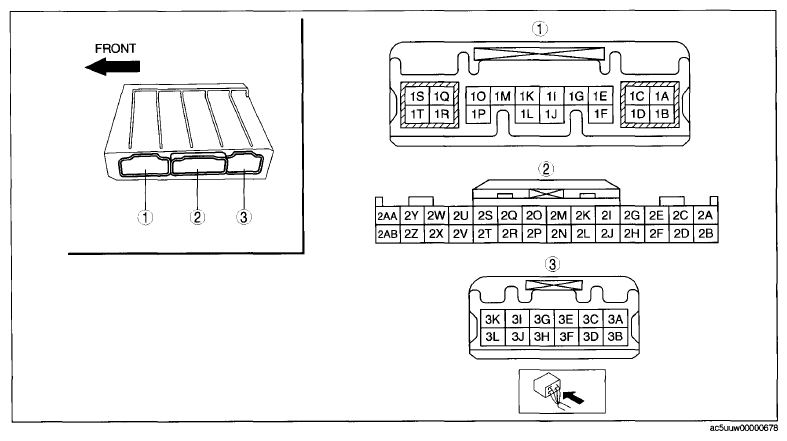

Fig 1: FBCM (Front Body Control Module) Connector End View

G09077900

Courtesy of MAZDA MOTORS CORP.
