Front Combination Light Disassembly/Assembly: Notes

  1. Disassemble in the order shown in the figure.

    Without discharge headlight system.

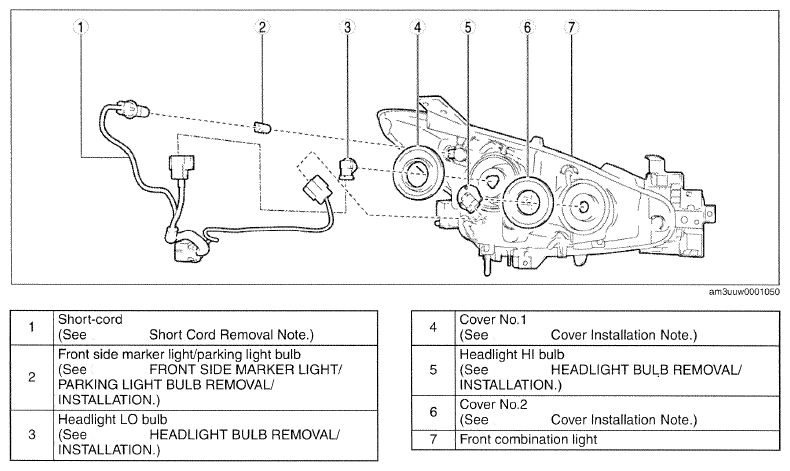

    Fig 1: Disassembled View Of Front Combination Light (Without Discharge Headlight System)
    G09772416Courtesy of MAZDA MOTORS CORP.

    With discharge headlight system

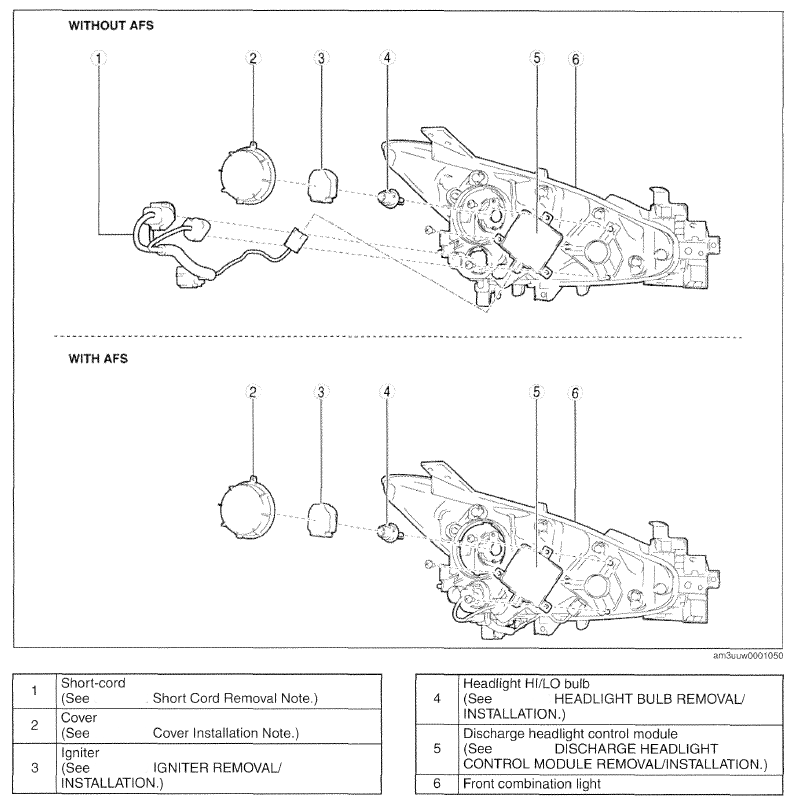

    Fig 2: Disassembled View Of Front Combination Light (With Discharge Headlight System)
    G09772417Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
