Discharge Headlight Control Module Removal/Installation

WARNING:
  • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  4. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  5. Disconnect the connector.
  6. Remove the screws.

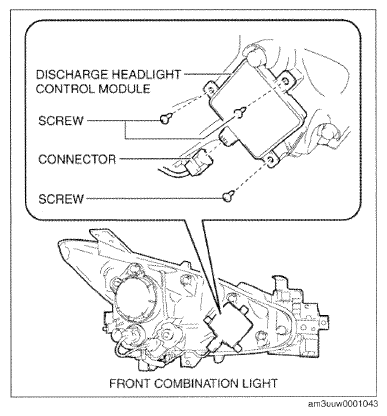

    Fig 1: Removing Connector And Screws
    G09772437Courtesy of MAZDA MOTORS CORP.
  7. Open the cover and insert the remover tool into the position shown in the figure.

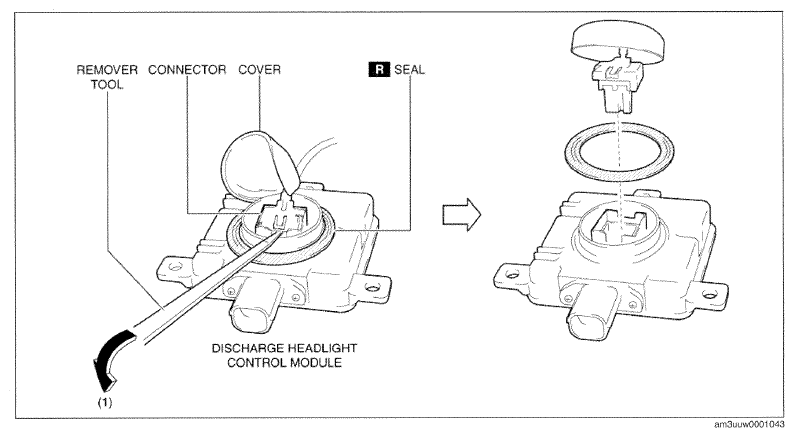

    Fig 2: Opening Cover Using Tool
    G09772438Courtesy of MAZDA MOTORS CORP.
  8. Move the remover tool in the direction of arrow (1) shown in the figure and lift up the connector to disengage it from the discharge headlight control module.
  9. Disconnect the connector and remove the discharge headlight control module.
  10. Remove the seal.
  11. Install in the reverse order of removal.
