MX-5 Miata Club, Standard Trans
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Basic System (HVAC)
>>
HVAC Basic System Location Index
HVAC Basic System Location Index

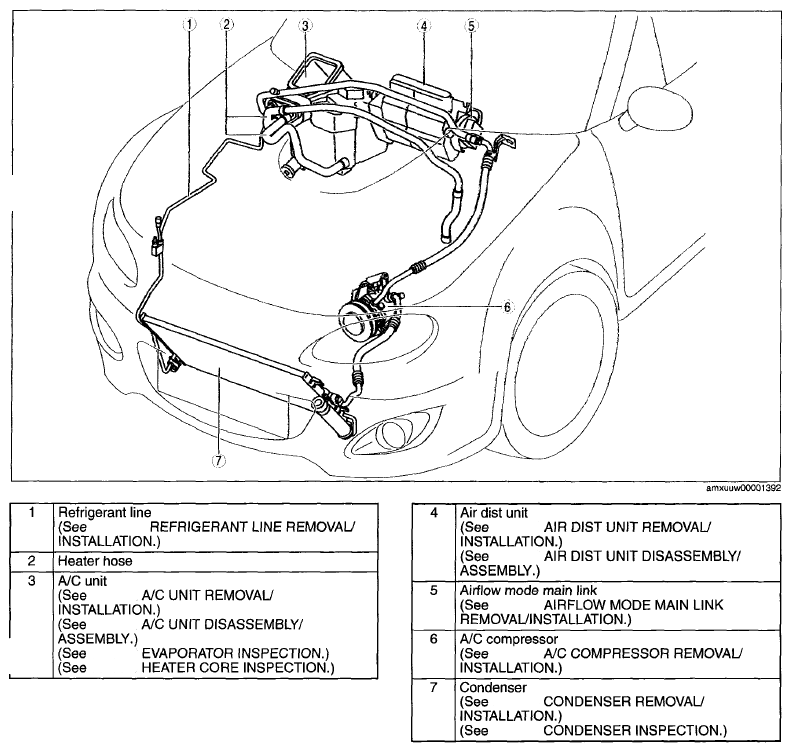

Fig 1: HVAC Basic System Components Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
