Power Retractable Hardtop Control Module Bracket Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  3. Remove the following parts:
    1. Console (See CONSOLE REMOVAL/INSTALLATION )
    2. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION )
    3. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION )
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION )
    5. Aeroboard (See AEROBOARD REMOVAL/INSTALLATION )
    6. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION )
    7. Back trim (See BACK TRIM REMOVAL/INSTALLATION )
  4. Remove the roof hook cable case.
    Fig 1: Roof Hook Cable Case And Nut With Torque Specifications
    G06149652Courtesy of MAZDA MOTORS CORP.
  5. Remove in the order indicated in the illustration.

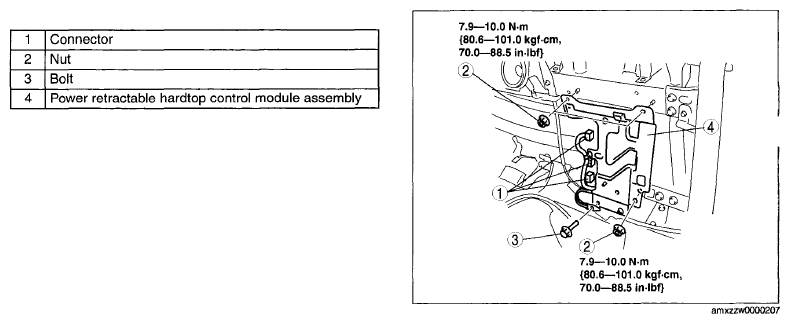

    Fig 2: Power Retractable Hardtop Control Module Assembly, Bolt And Nut With Torque Specifications
    G06149653Courtesy of MAZDA MOTORS CORP.
  6. Remove the nuts.
  7. Remove the power retractable hardtop control module from the power retractable hardtop control module bracket.
  8. Install in the reverse order of removal.
    Fig 3: Power Retractable Hardtop Control Module And Power Retractable Hardtop Control Module Bracket
    G06149654Courtesy of MAZDA MOTORS CORP.
