With Position Memory System

  1. Disconnect the negative battery cable.
  2. Remove the power window main switch. See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION . Note:
    • The power outer mirror switch is integrated with the power window main switch.
  3. Verify that the resistance between the power outer mirror switch terminals is as indicated in the table.
    • If not as indicated in the article, replace the power outer mirror switch.

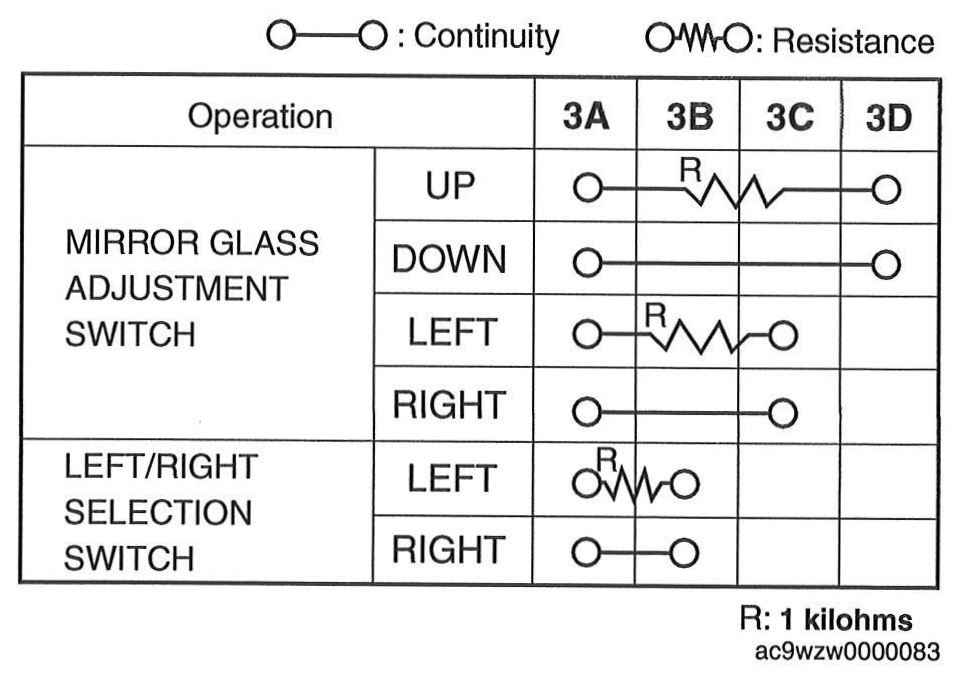

      Fig 1: Power Outer Mirror Switch Terminals Continuity Chart (With Position Memory System)
      G00535501Courtesy of MAZDA MOTORS CORP.

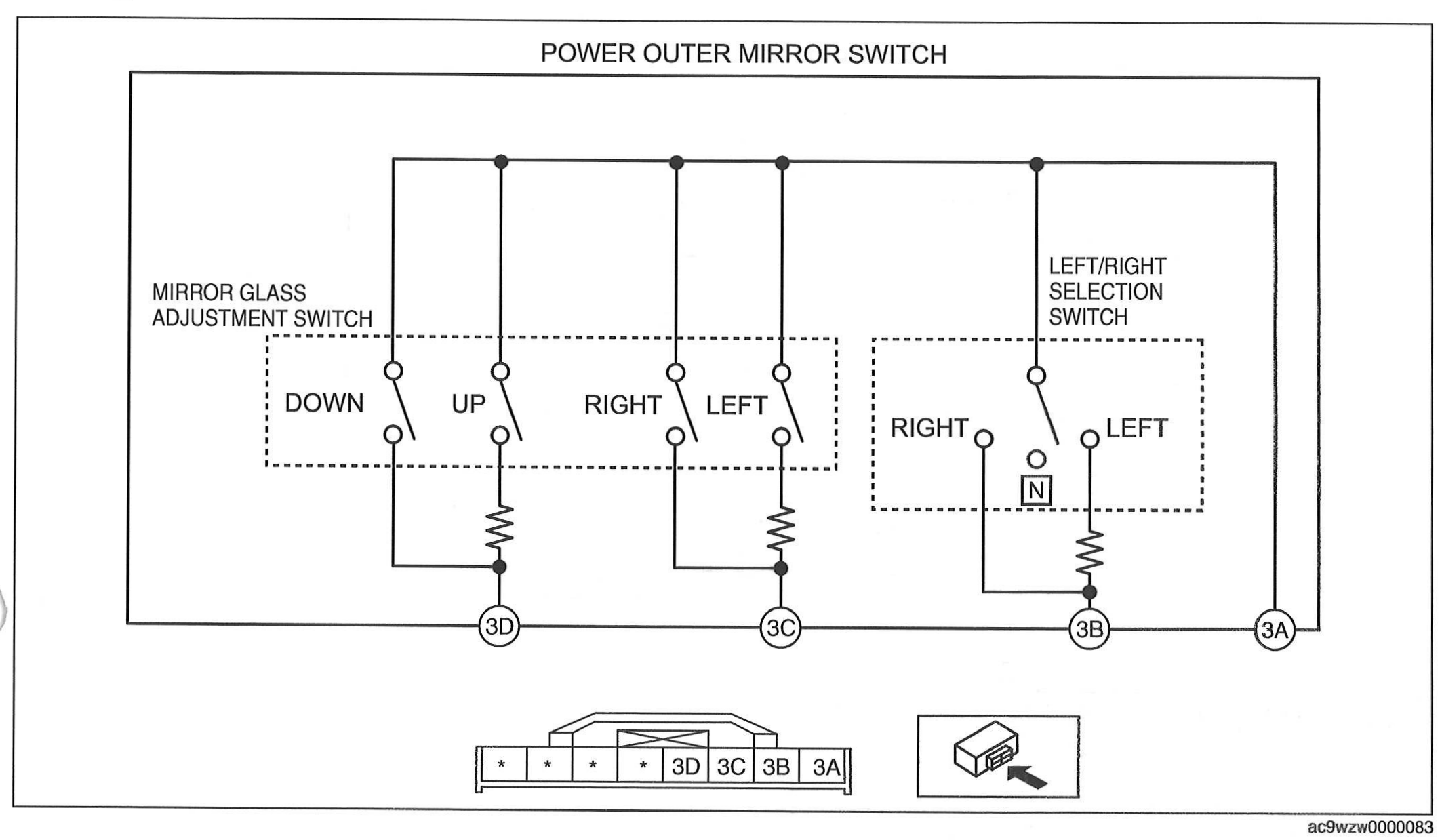

      Fig 2: Power Outer Mirror Switch Circuit Diagram (With Position Memory System)
      G00535502Courtesy of MAZDA MOTORS CORP.
