Mirror Position Sensor Inspection (Vehicles With Position Memory Control System)
- Disconnect the negative battery cable.
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the mirror position sensor connector.

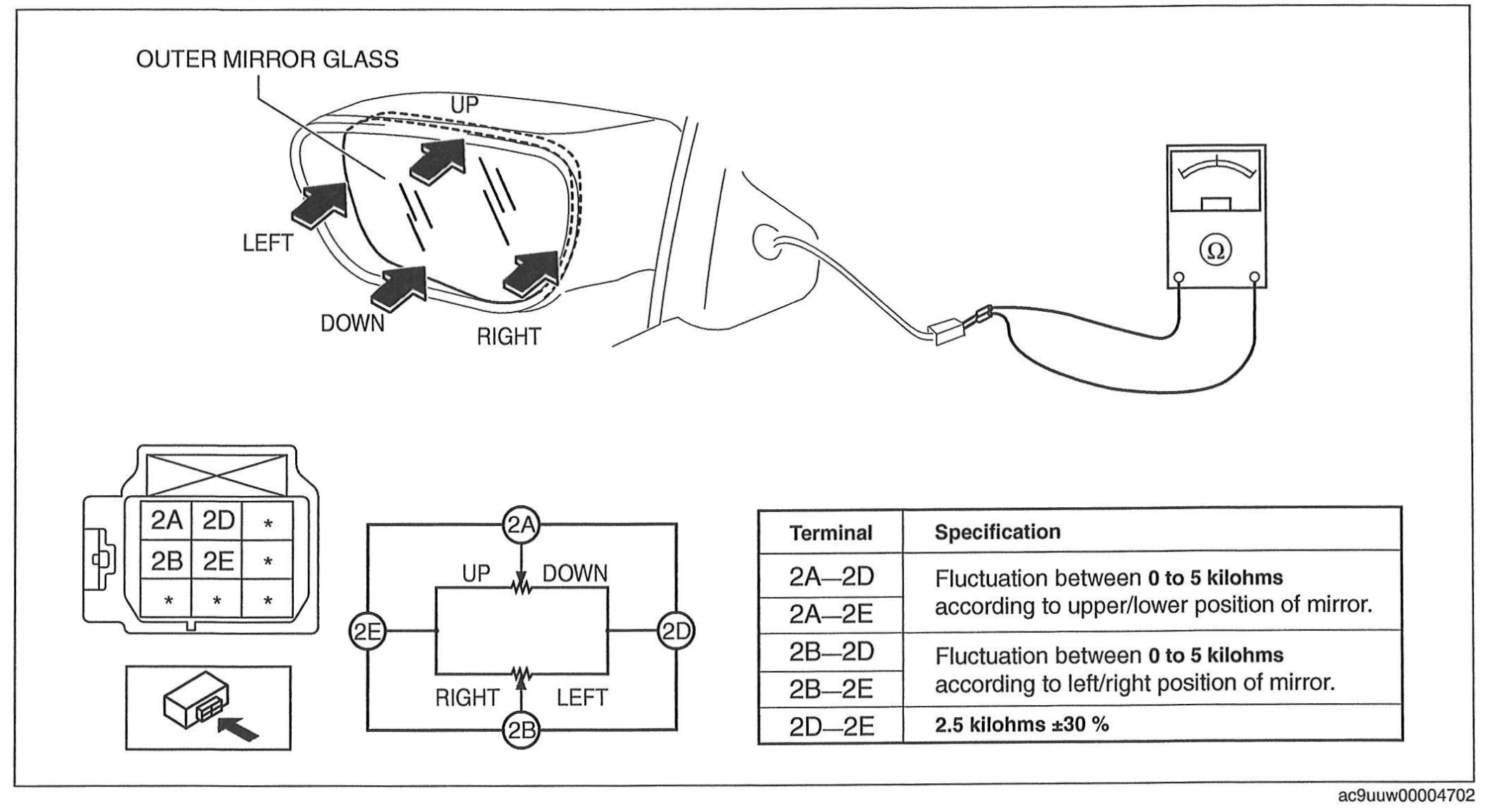

- Verify that the resistance between the mirror position sensor connector terminals is as indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in teh table, replace the power mirror outer mirror. See POWER OUTER MIRROR REMOVAL/INSTALLATION .
