CX-9 Touring, 3.7L Eng VIN A, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Memory Modules
>>
On-Board Diagnostic [Position Memory Control System]
>>
System Wiring Diagram [Position Memory Control System]
System Wiring Diagram [Position Memory Control System]

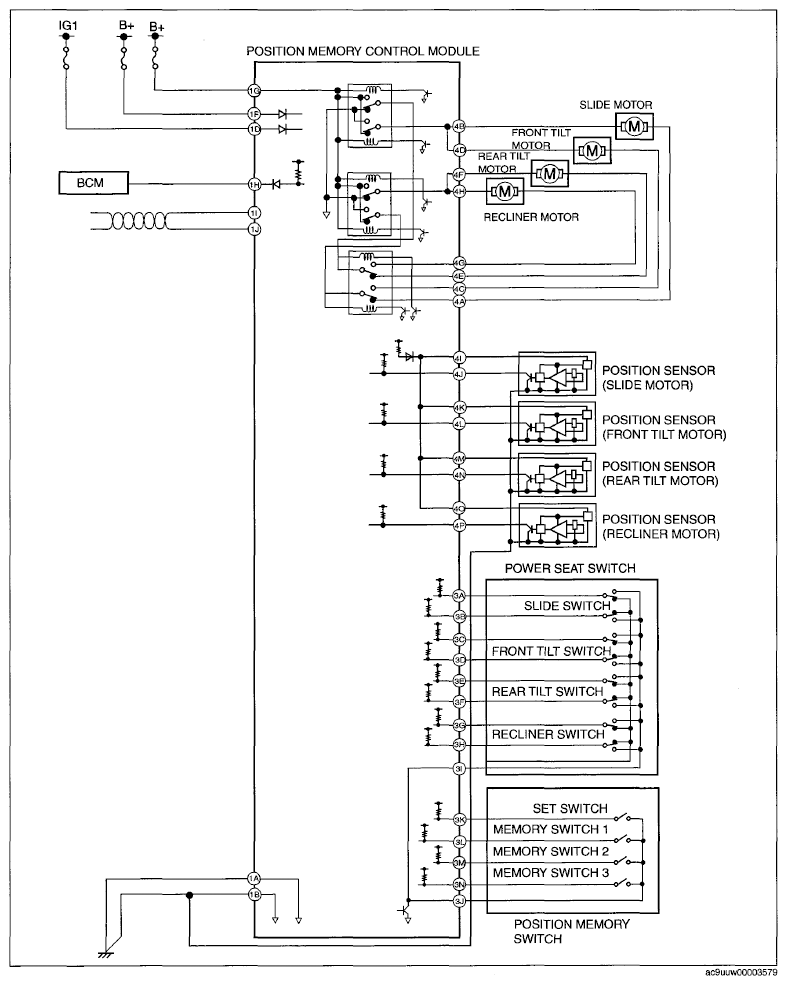

Fig 1: System Wiring Diagram (Position Memory Control System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
