U.S.A. And CANADA: Notes

  1. Level the vehicle.
  2. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION ).
  3. Drain the fuel. (See FUEL DRAINING PROCEDURE ).
  4. Open the fuel-filler lid.
  5. Remove in the order indicated in the table.

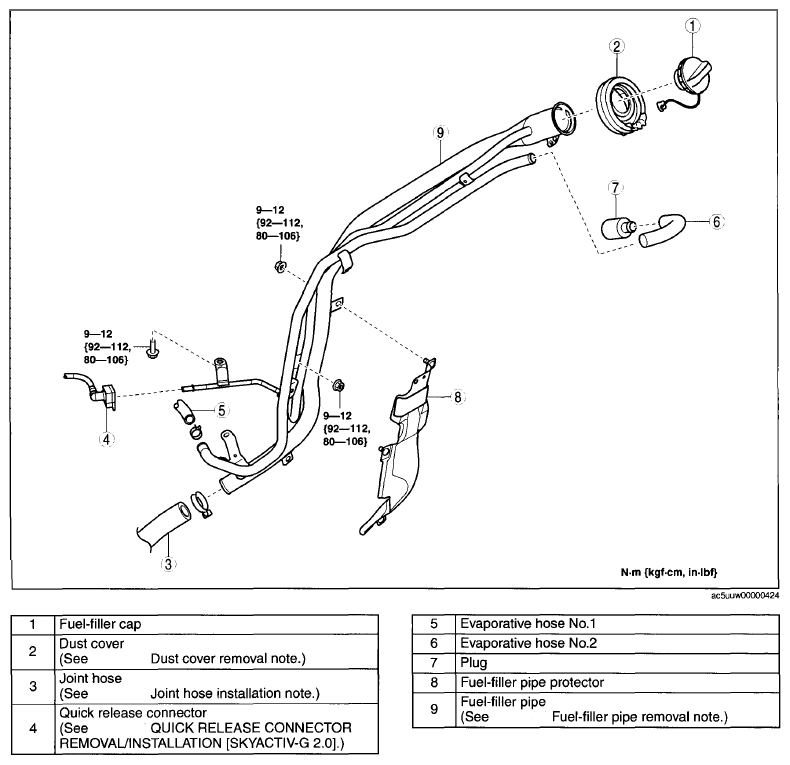

    Fig 1: Exploded View Of Fuel Filler Pipe With Torque Specifications (U.S.A. And Canada)
    G09074923
  6. Install in the reverse order of removal.
  7. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION ).
