Except U.S.A. And CANADA: AWD

Level the vehicle.
Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION ).
Drain the fuel. (See FUEL DRAINING PROCEDURE ).
Using the following procedure:
6:4 split type
1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION ).
4:2:4 split type
1. Set the rear seat aside as shown in the figure. (See REAR SEAT REMOVAL/INSTALLATION ).
Main side

Fig 1: Positioning Rear Seat (AWD Main Side)

Sub side
Partially peel back the floor mat as shown in the figure.

Fig 2: Positioning Rear Seat (Sub Side)

Main side

Fig 3: Identifying Floor Mat (Main Side)

Sub side
Remove the service hole cover.

Fig 4: Identifying Floor Mat (Sub Side)

Main side

Fig 5: Identifying Service Hole Cover And Screws (Main Side)

Sub side
Disconnect the following parts:
Main side
- Fuel pump unit connector
- Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION ).
Sub side
- Fuel gauge sender unit (sub) connector
Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION ).
Disconnect the HO2S connector.
Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).
Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION ).
Remove in the order indicated in the table.
Install in the reverse order of removal.

Fig 6: Identifying Service Hole Cover And Screws (Sub Side)
Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION ).

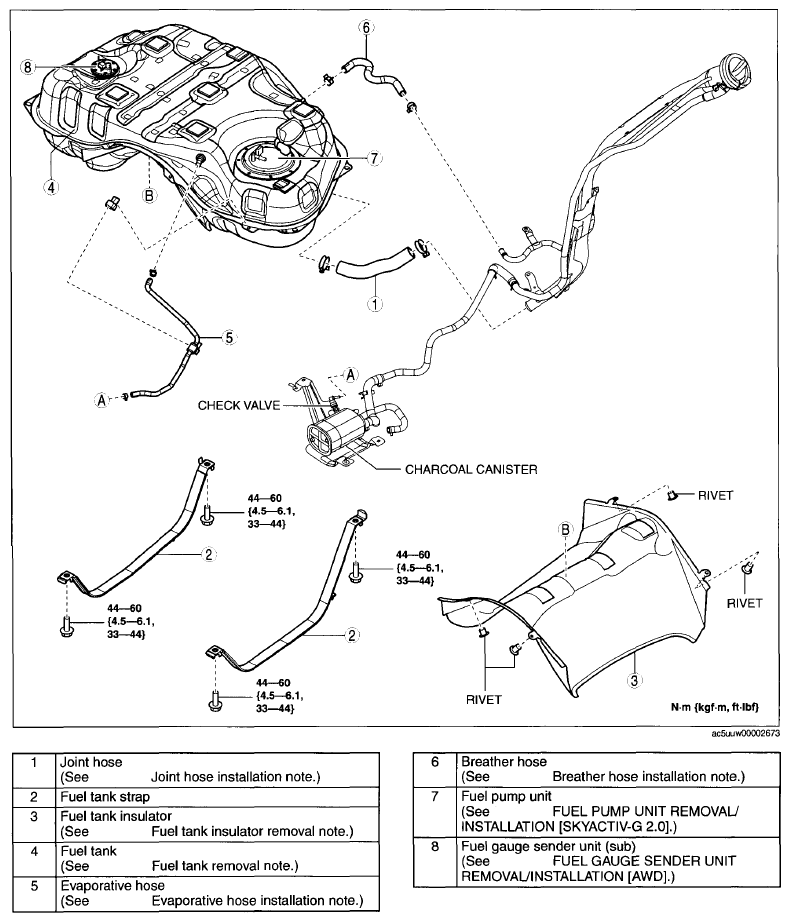

Fig 7: Exploded View Of Fuel Pump Unit Related Components With Torque Specifications
