Coolant Reserve Tank Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

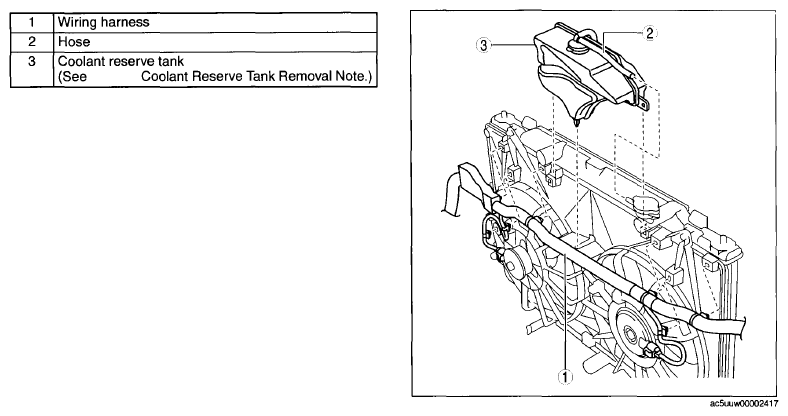

    Fig 1: Identifying Coolant Reserve Tank, Hose And Wiring Harness
    G09074374
