Fuse Box

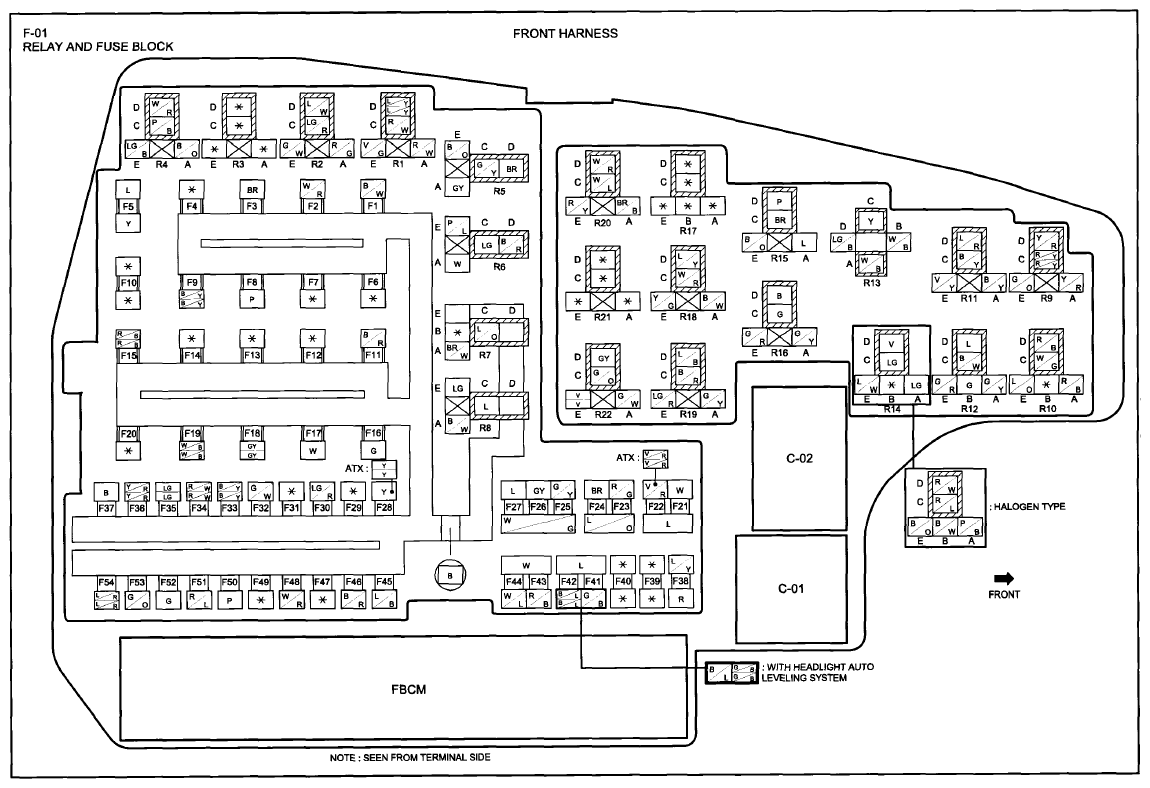

Fig 1: Main Fuse Block - System Diagram (00F-1a)

G09120157

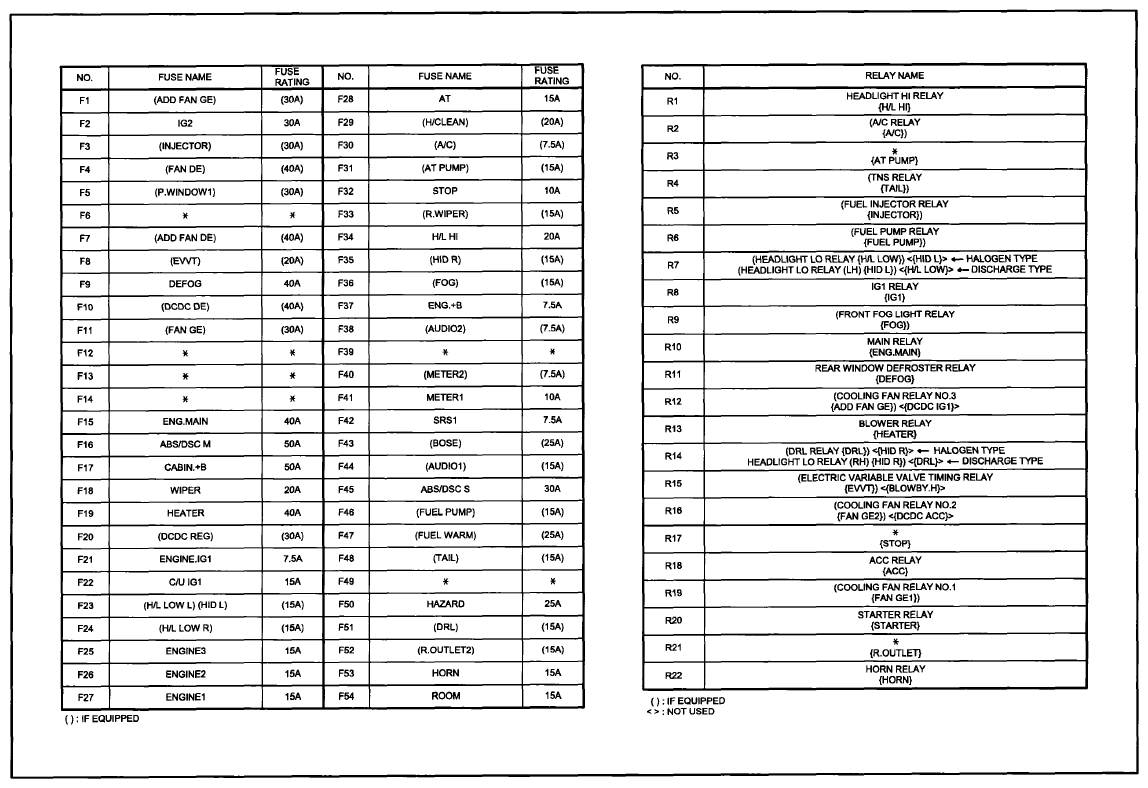

Fig 2: Main Fuse Box Legend Description (00F-1b)

G09120158

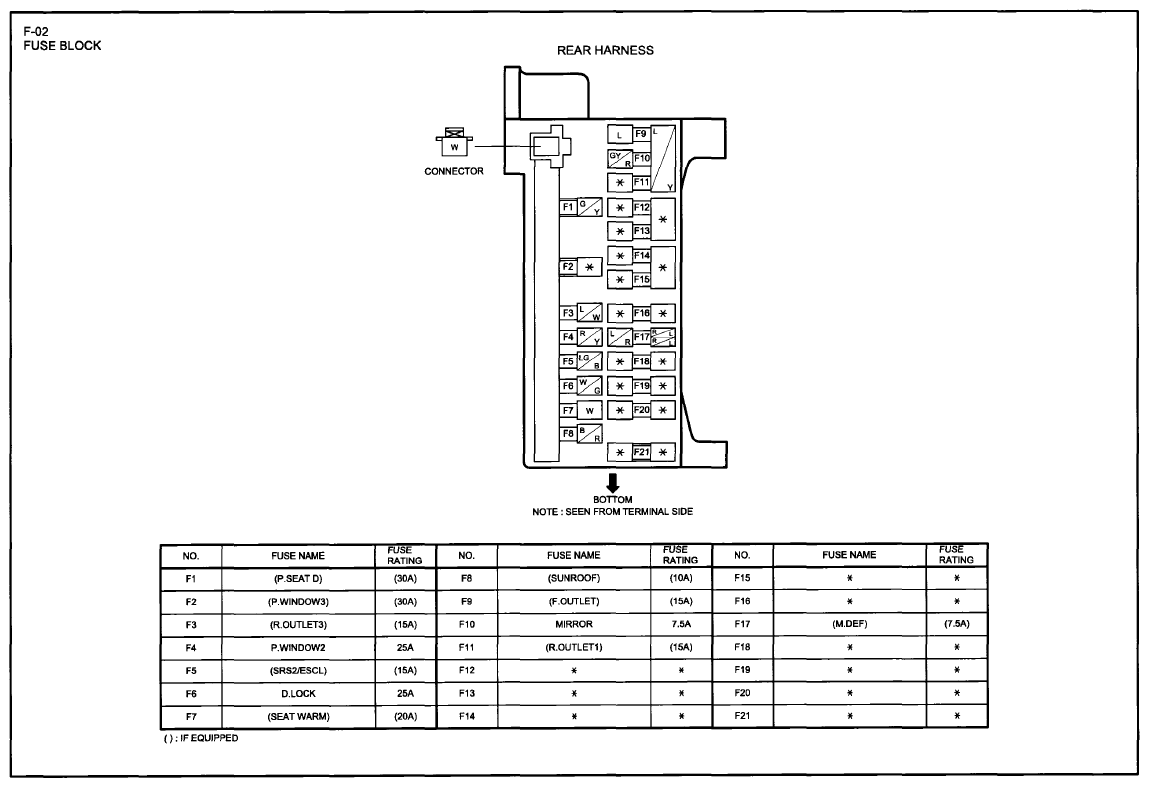

Fig 3: Fuse Box With Legend Description (00F-2)

G09120159

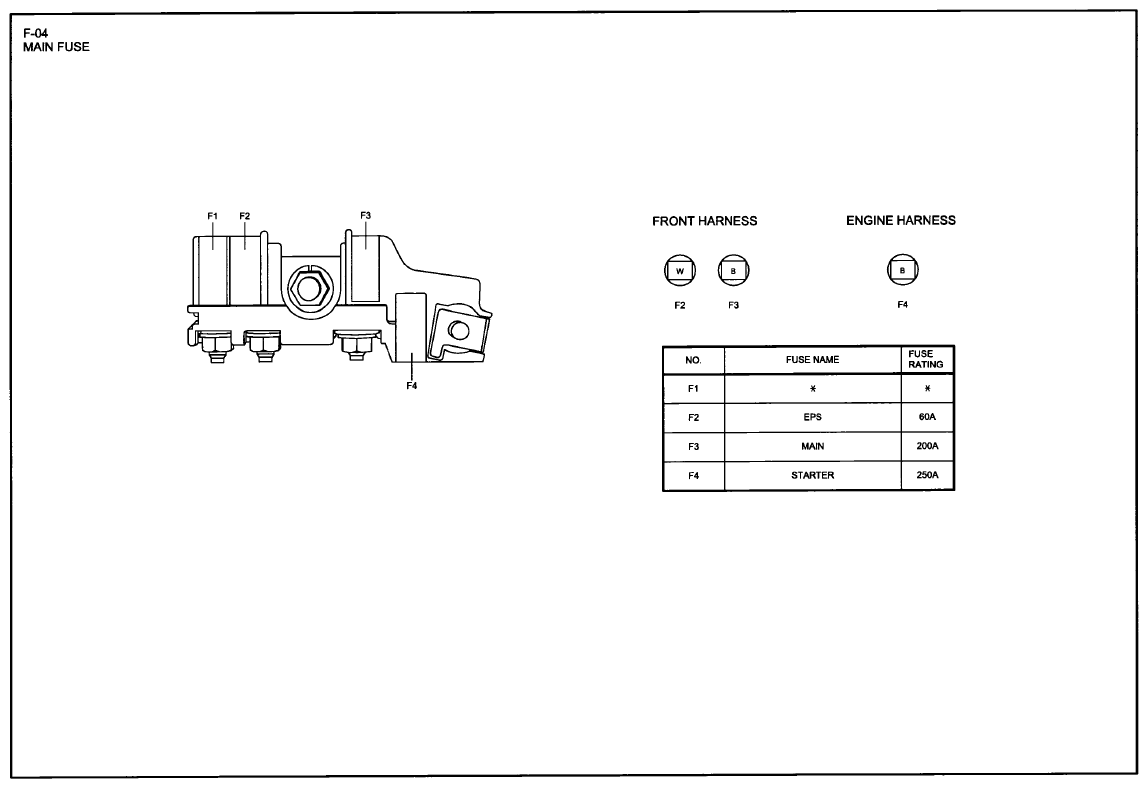

Fig 4: Fuse Box With Legend Description (00F-4)

G09120160
