Control System (SKYACTIV-G 2.0)

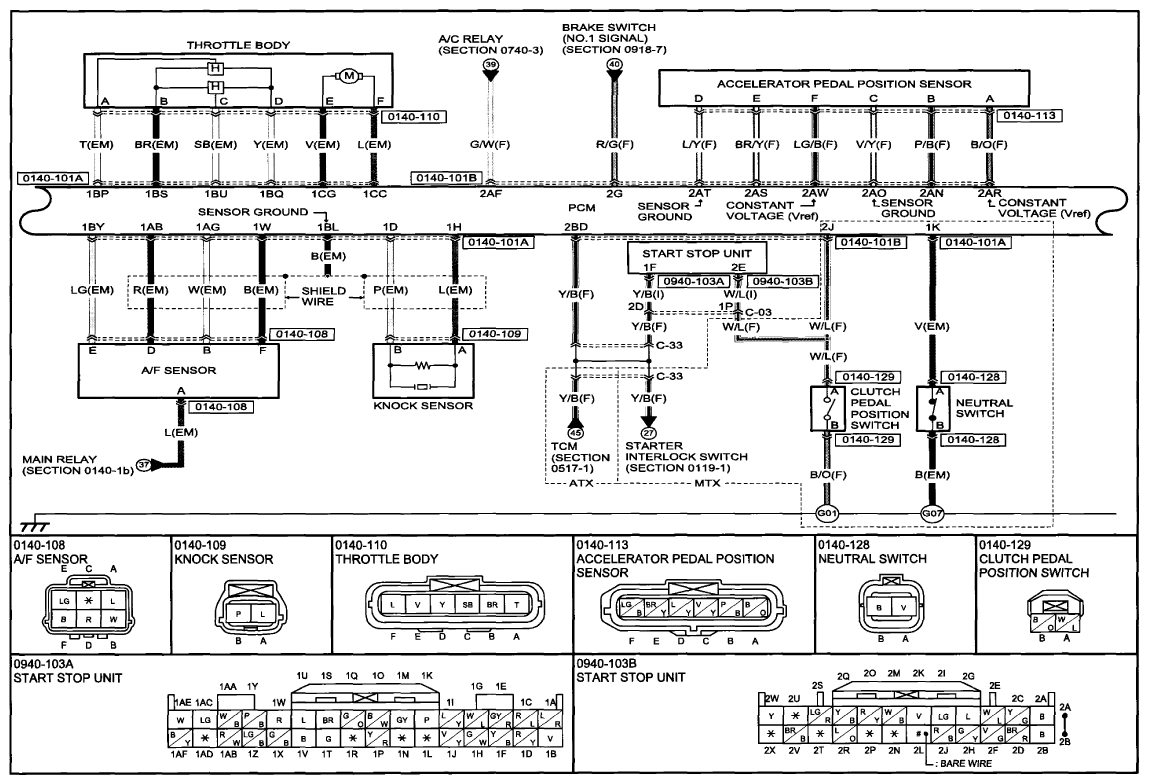

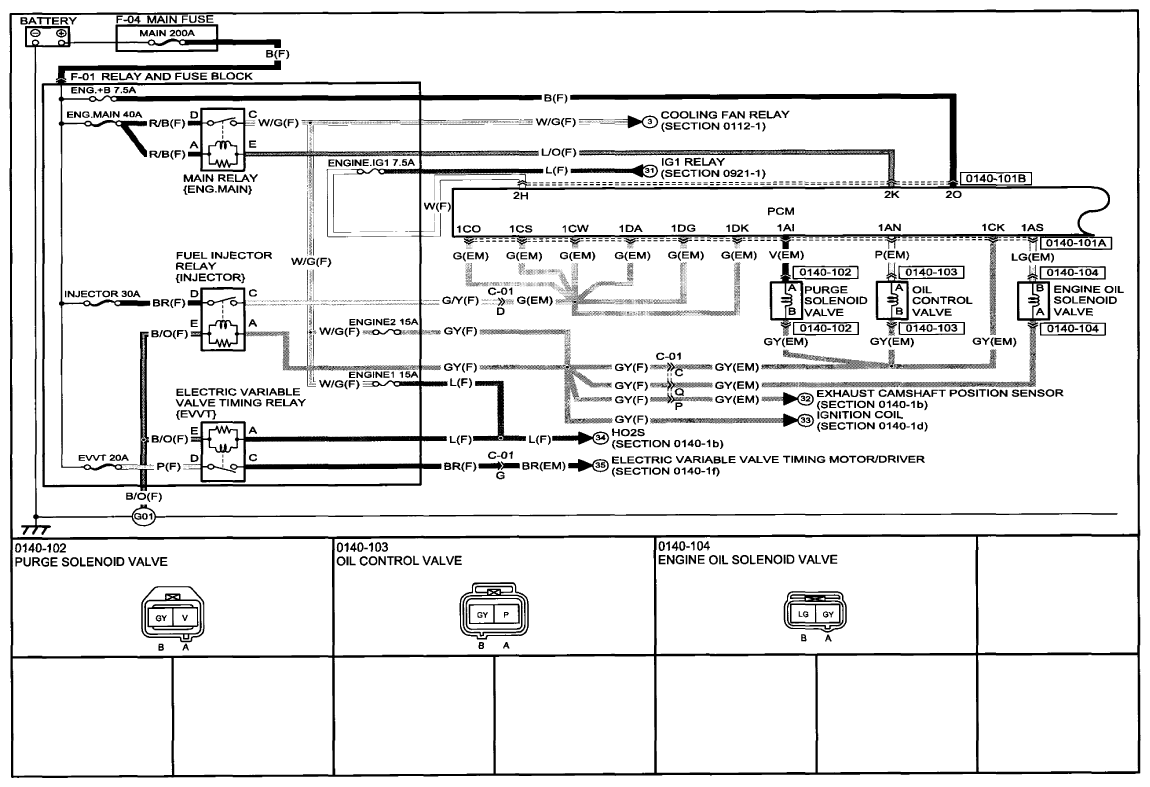

Fig 1: Control System (SKYACTIV-G 2.0) Wiring Diagram (0140-1a) 1 Of 2

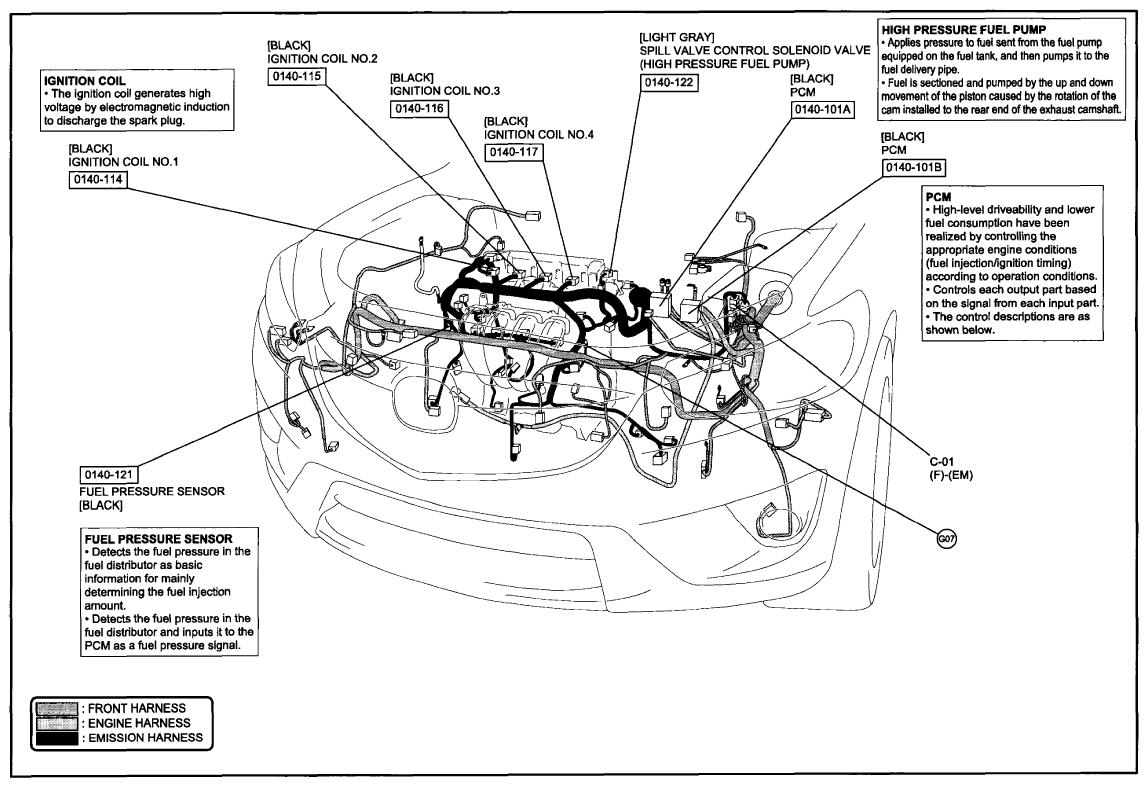

Fig 2: Control System (SKYACTIV-G 2.0) Wiring Harness Routing Diagram (0140-1a) 2 Of 2

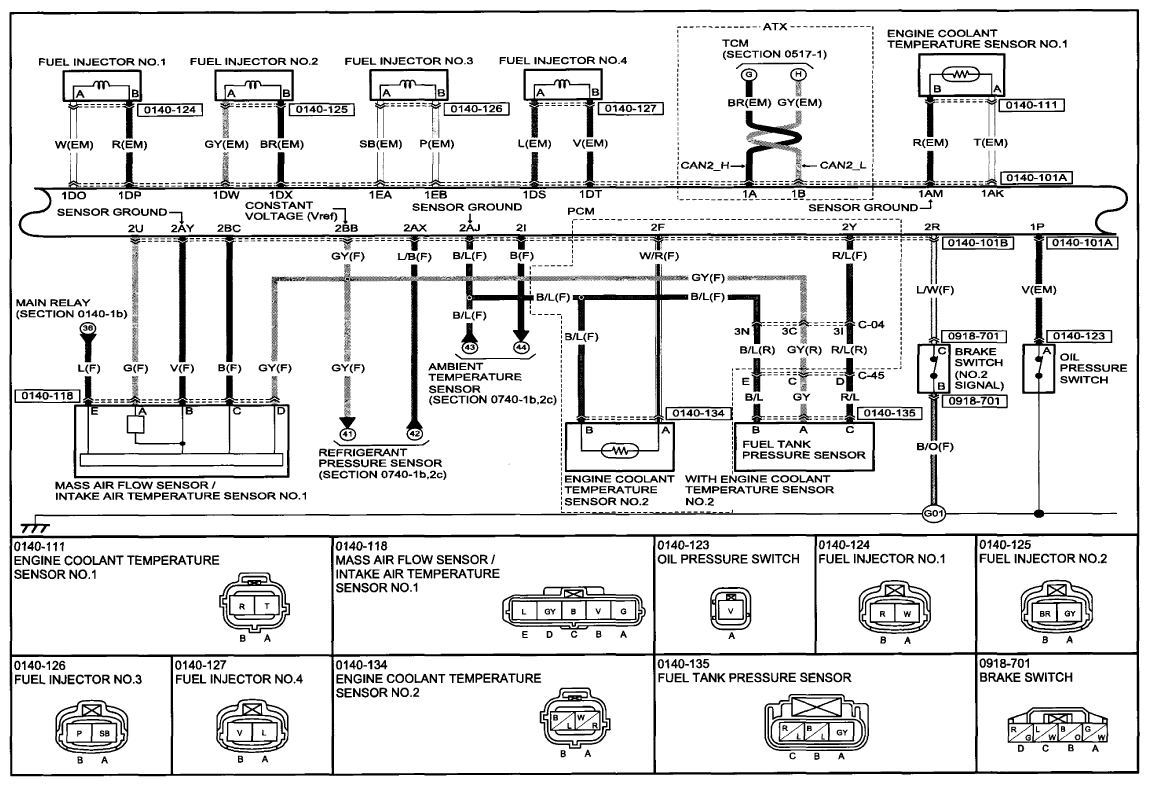

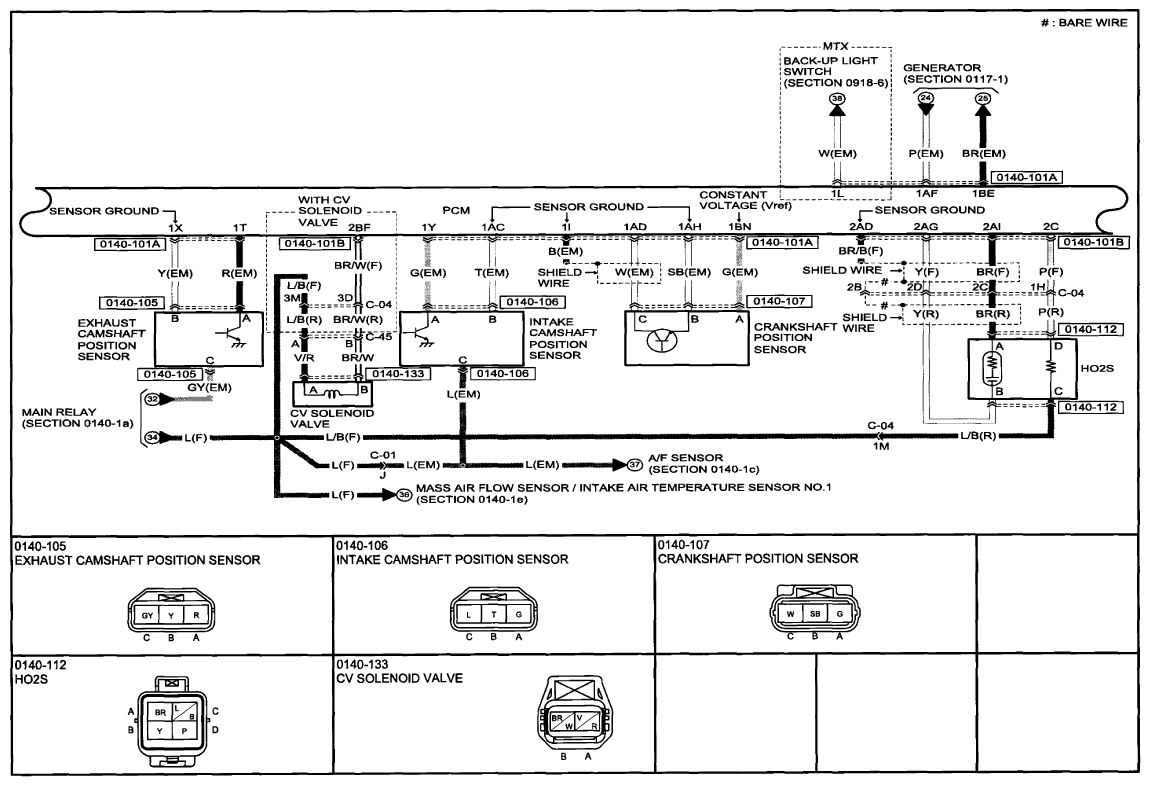

Fig 3: Control System (SKYACTIV-G 2.0) Wiring Diagram (0140-1b) 1 Of 2

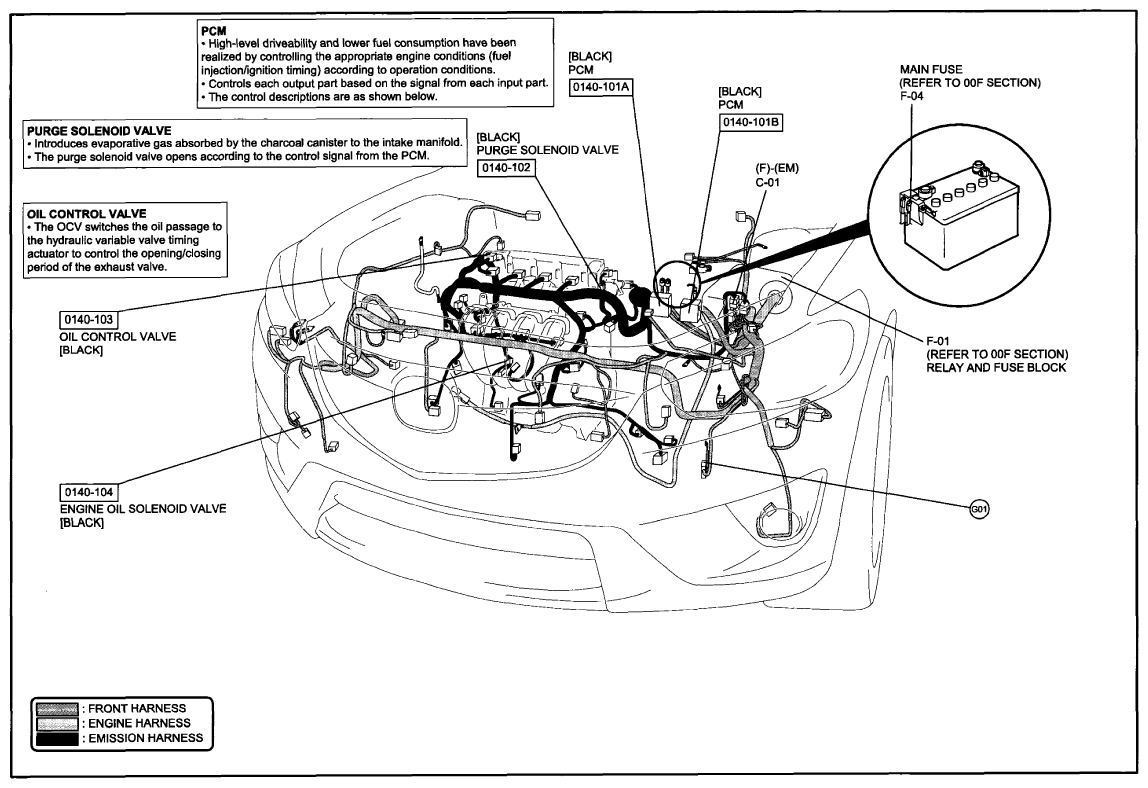

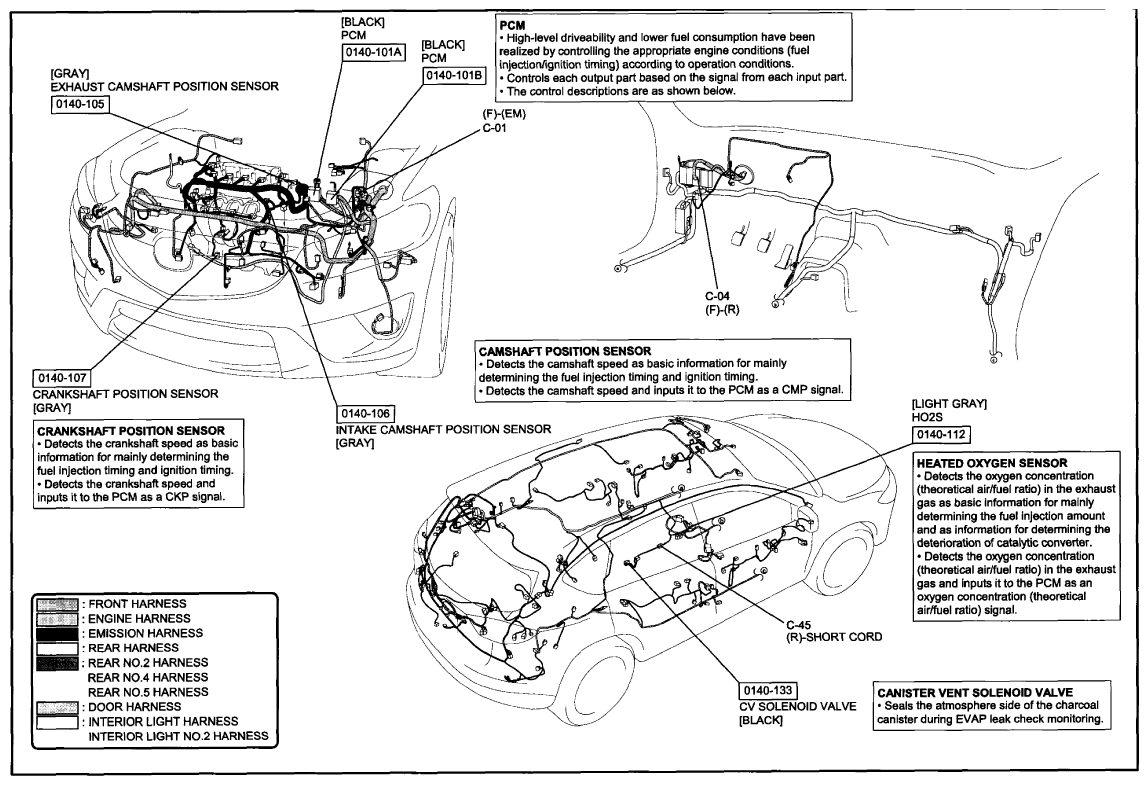

Fig 4: Control System (SKYACTIV-G 2.0) Wiring Harness Routing Diagram (0140-1b) 2 Of 2

Fig 5: Control System (SKYACTIV-G 2.0) Wiring Diagram (0140-1c) 1 Of 2

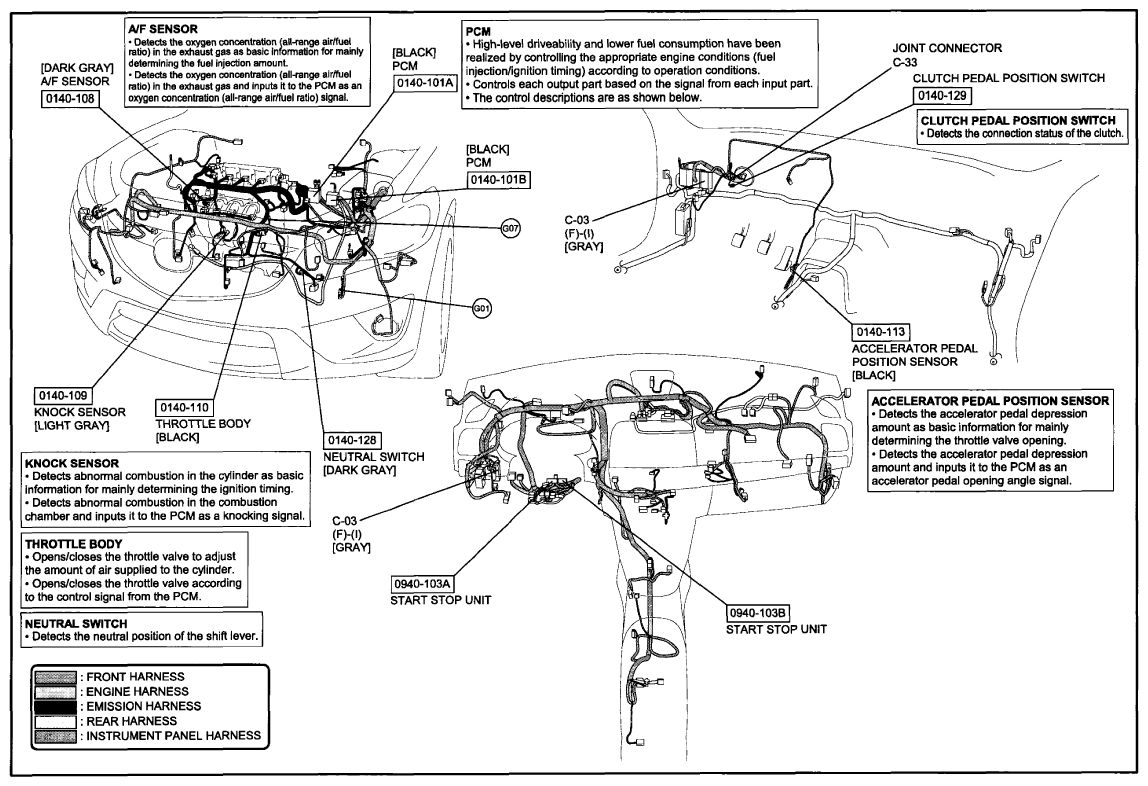

Fig 6: Control System (SKYACTIV-G 2.0) Wiring Harness Routing Diagram (0140-1c) 2 Of 2

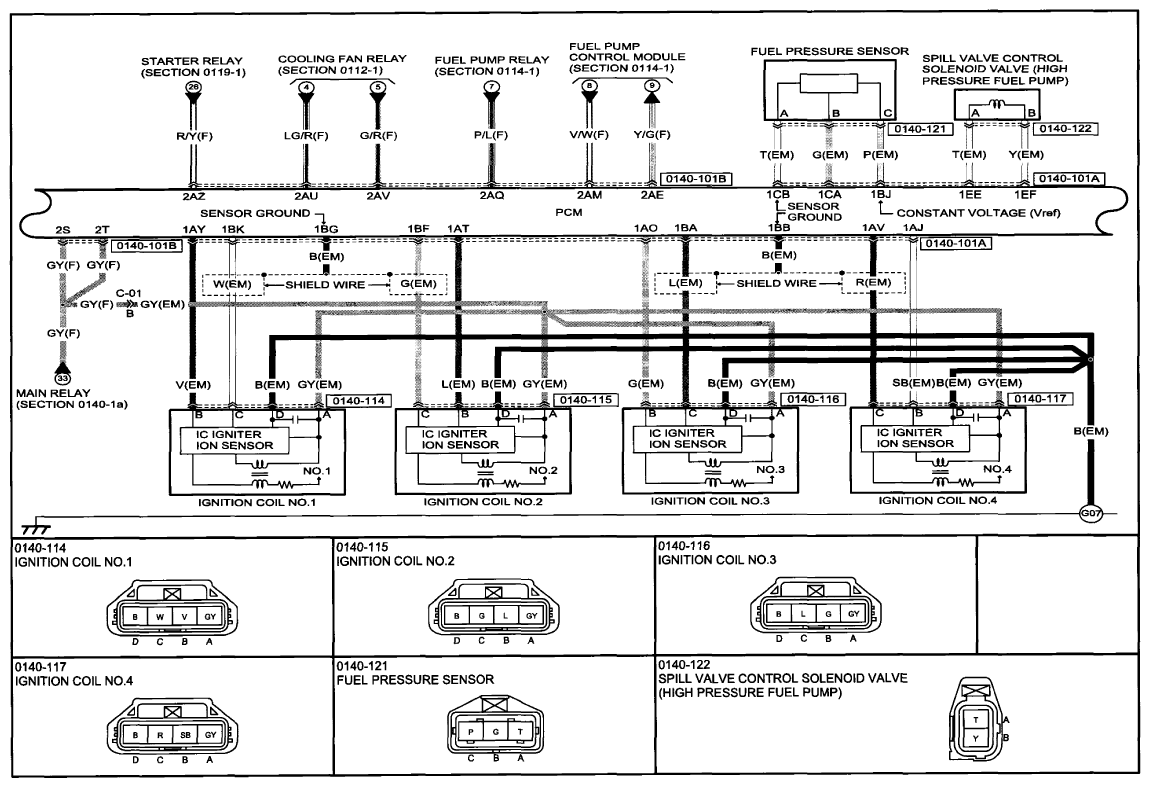

Fig 7: Control System (SKYACTIV-G 2.0) Wiring Diagram (0140-1d) 1 Of 2

Fig 8: Control System (SKYACTIV-G 2.0) Wiring Harness Routing Diagram (0140-1d) 2 Of 2

Fig 9: Control System (SKYACTIV-G 2.0) Wiring Diagram (0140-1e) 1 Of 2

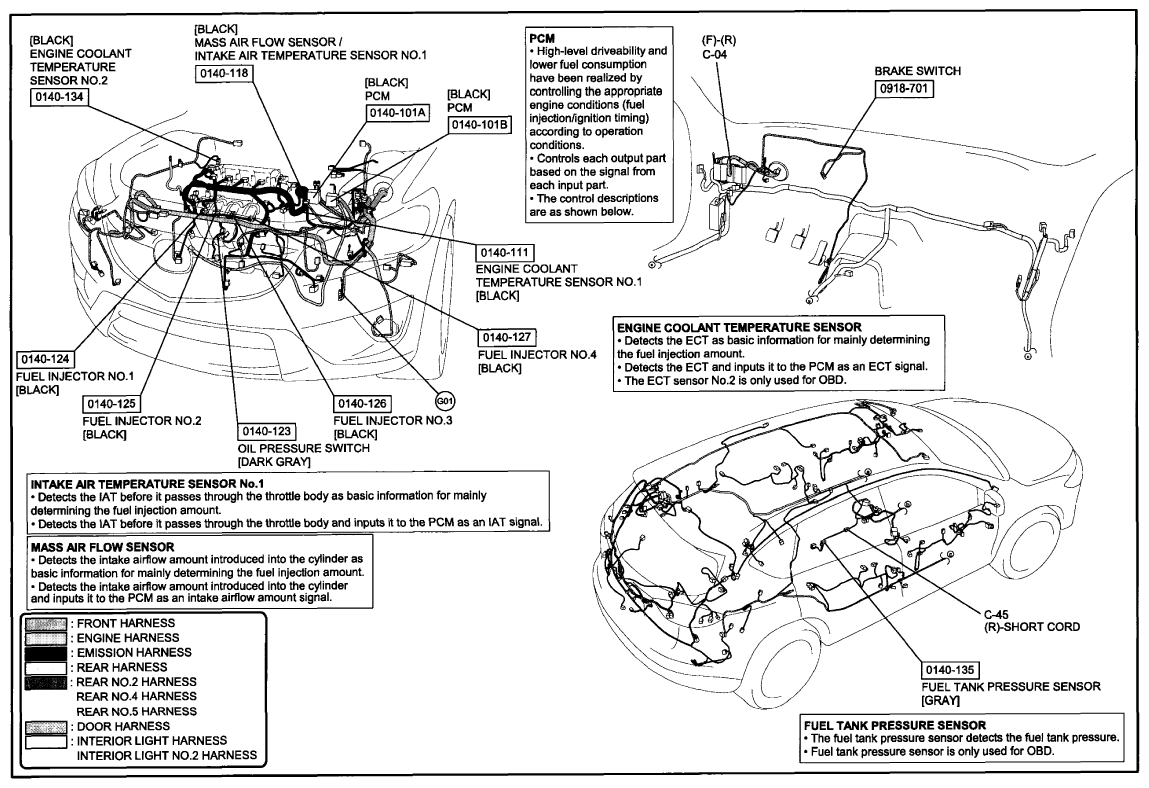

Fig 10: Control System (SKYACTIV-G 2.0) Wiring Harness Routing Diagram (0140-1e) 2 Of 2

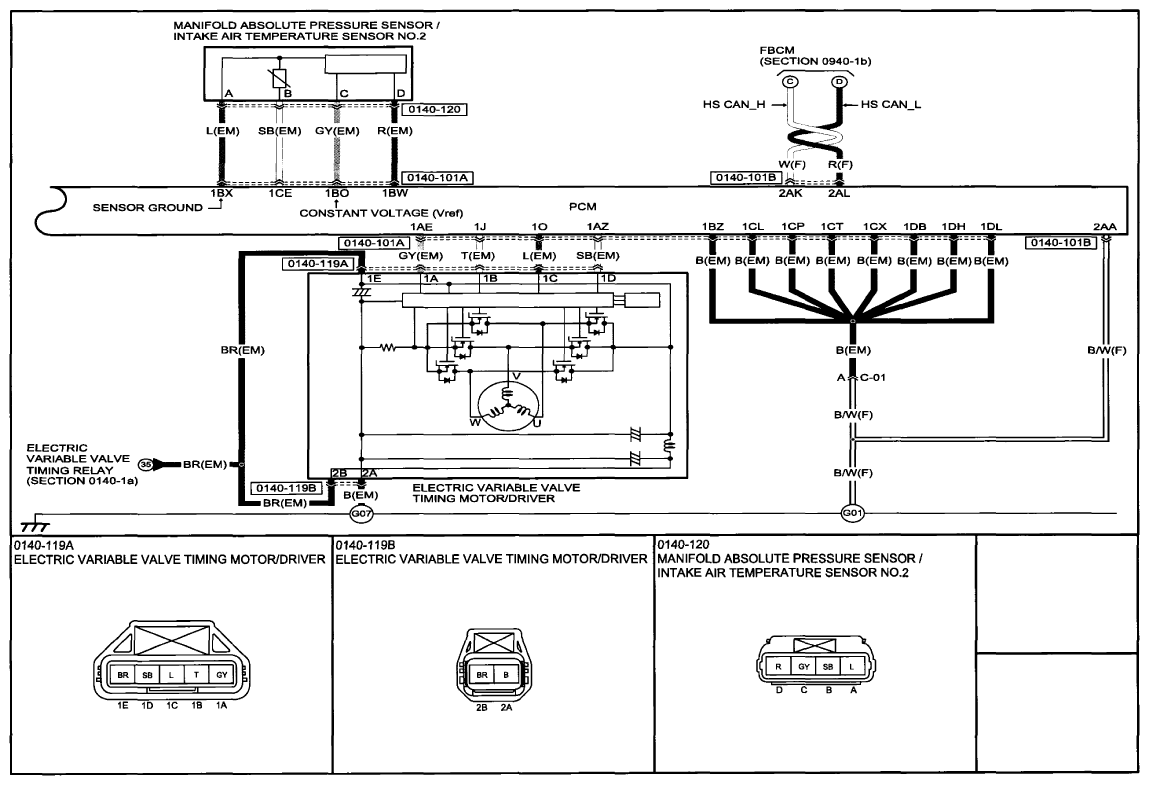

Fig 11: Control System (SKYACTIV-G 2.0) Wiring Diagram (0140-1f) 1 Of 2

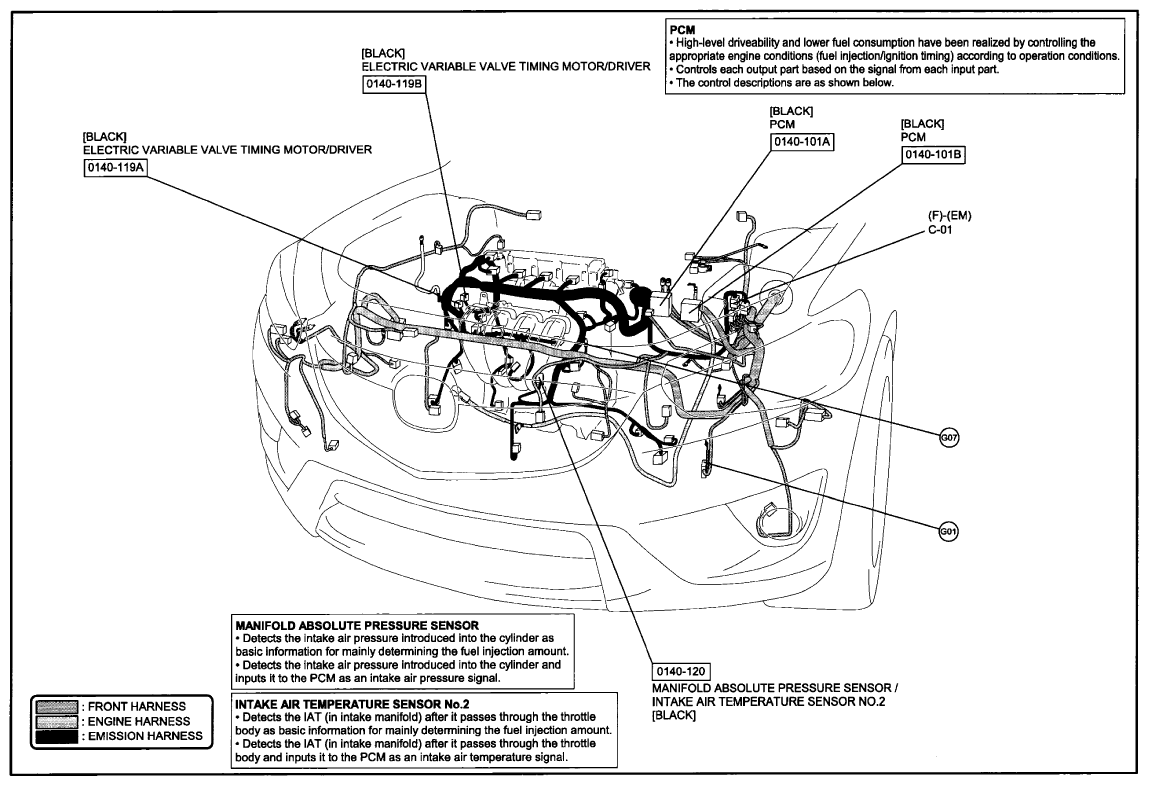

Fig 12: Control System (SKYACTIV-G 2.0) Wiring Harness Routing Diagram (0140-1f) 2 Of 2
