DSC System Wiring Diagram
DSC System Wiring Diagram

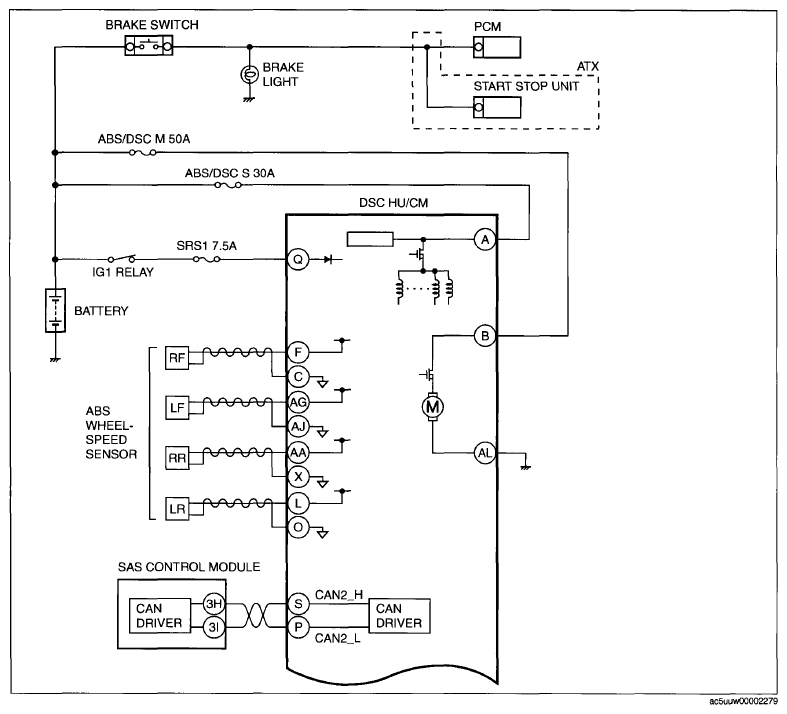

Fig 1: DSC System - Wiring Diagram (1 Of 2)

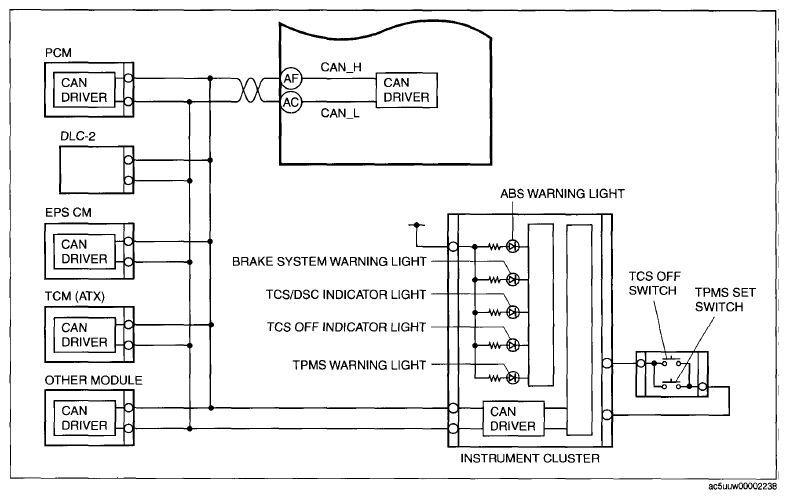

Fig 2: DSC System - Wiring Diagram (2 Of 2)
