Trunk Board Removal/Installation

  1. Set the trunk covering aside.
  2. Remove the trunk board No.1 in the direction of the arrow (1) shown in the figure.

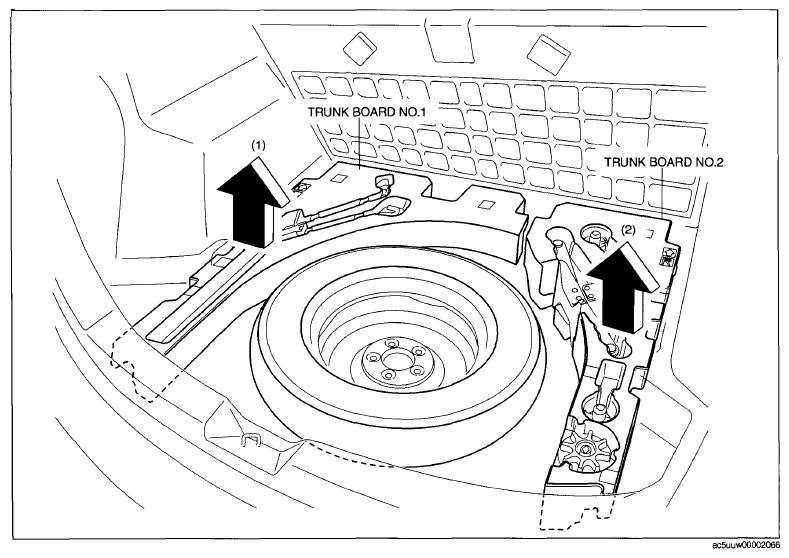

    Fig 1: Removing Trunk Board
    G09077292
  3. Remove the trunk board No.2 in the direction of the arrow (2) shown in the figure.
  4. Install in the reverse order of removal.
