Theft-Deterrent Horn Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the following parts:
    1. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION ).
    2. Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
    3. Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION ).
  3. Disconnect the connector.
  4. Remove the bolt.
  5. Remove the theft-deterrent horn.
  6. Install in the reverse order of removal

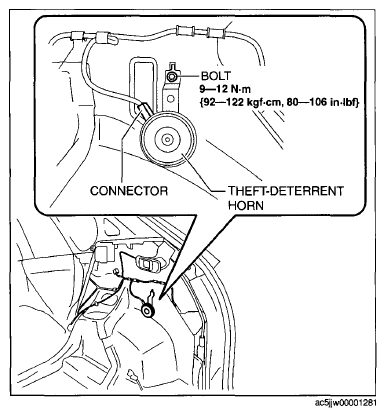

    Fig 1: Theft-Deterrent Horn, Connector And Bolt With Torque Specifications
    G09077107
