Front Door Key Cylinder Switch Unlock-Side Inspection

Press in the latch lever of the front door latch and lock actuator using a flathead screwdriver, and set it to the latched condition.

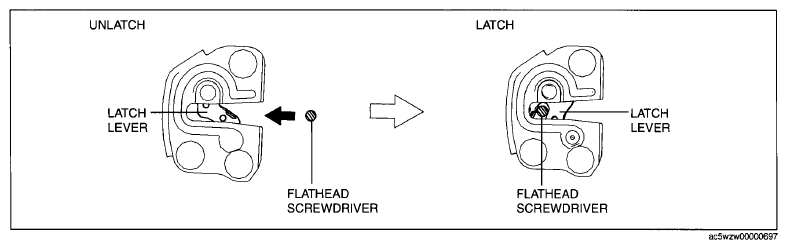

Fig 1: Adjusting Front Door Latch Lever
Rotate the front door key cylinder in the direction of the arrow until it stops to set the front door key cylinder switch to the unlocked condition.
To verify that the switch is in the unlocked position, press down the rod holder in the direction of the arrow and verify that the latch lever moves.

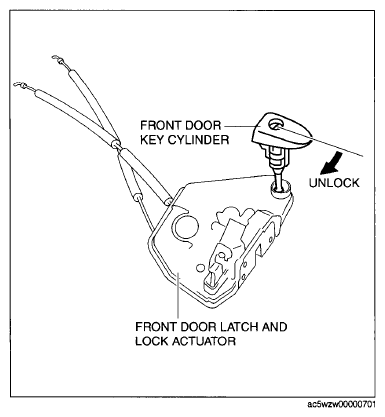

Fig 2: Identifying Front Door Key Cylinder, Front Door Latch And Lock Actuator Unlock Condition

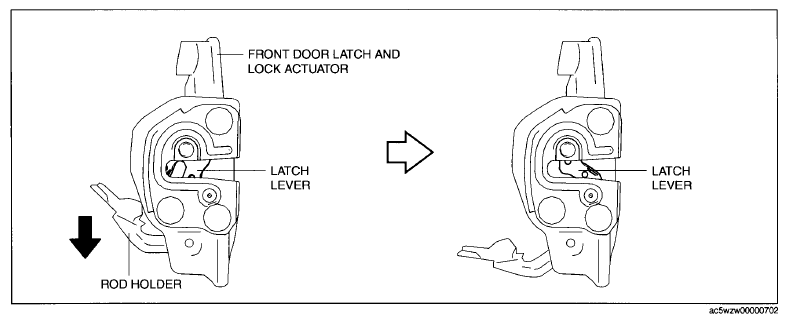

Fig 3: Checking Latch Lever Movement
NOTE:
- If the latch lever does not move, the front door key cylinder switch is not in the unlocked position. Repeat the procedure from Step 2.
Verify that the continuity of the front door key cylinder is as indicated in the table.

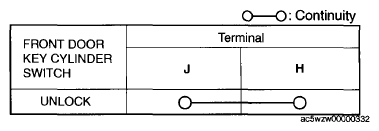

Fig 4: Front Door Key Cylinder Switch Terminal Reference Chart

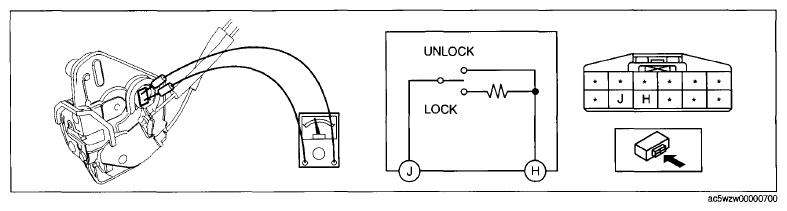

Fig 5: Checking Continuity Of Front Door Key Cylinder
- If not as indicated in the table, replace the front door latch and lock actuator.
