Passenger's Side

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the power window subswitch cover. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION ).
  3. Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION ).
  4. Verify that the continuity is as indicated in the table.

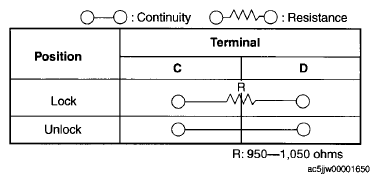

    Fig 1: Door Lock Continuity Reference Chart (Passenger Side)
    G09076994
    Fig 2: Door Lock Continuity - Circuit Diagram (Passenger Side)
    G09076995
    • If not as indicated in the table, replace the door lock switch.
