Troubleshooting Procedure

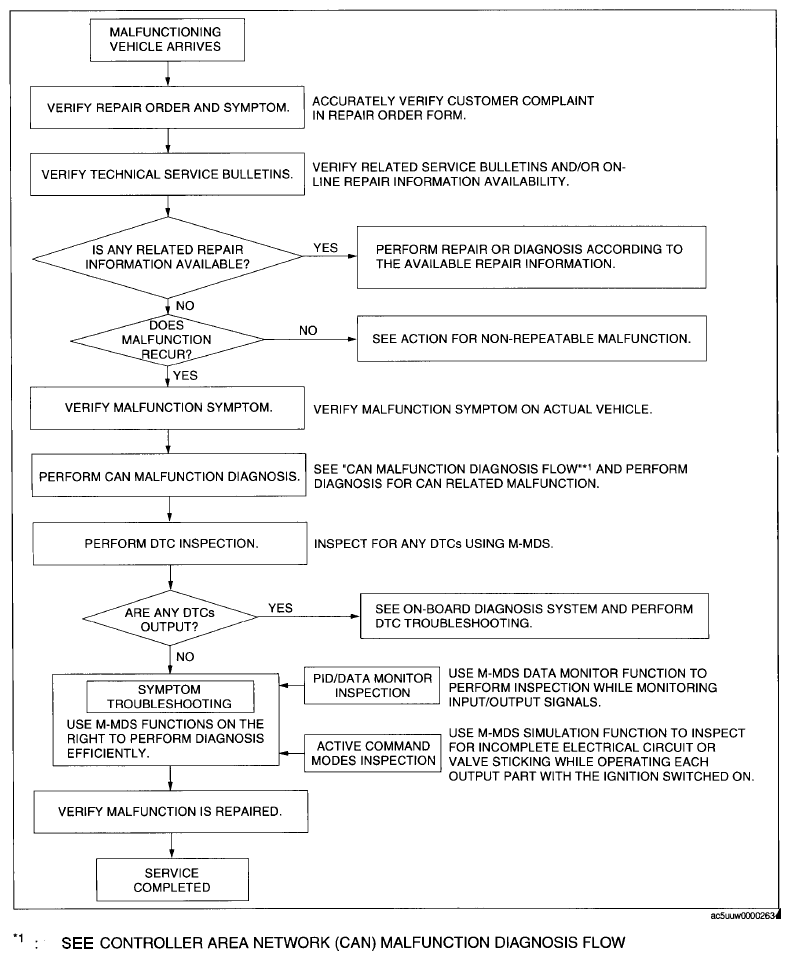

Fig 1: Troubleshooting Procedure Workflow Chart (Advanced Keyless Entry System)

G09076276
