Driver-Side Crash Zone Sensor Connector End View

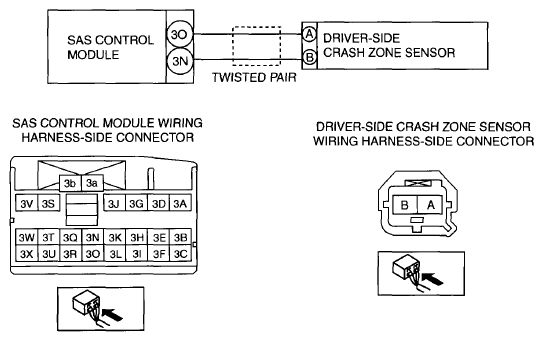

Fig 1: Driver-Side Crash Zone Sensor Connector End View
G09075940Courtesy of MAZDA MOTORS CORP.

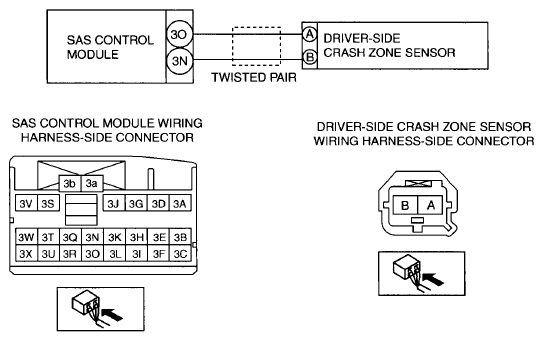

Fig 1: Driver-Side Crash Zone Sensor Connector End View
G09075999Courtesy of MAZDA MOTORS CORP.
