Selector Cable Adjustment

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION ).
  3. Remove the screws from the bracket.
  4. Remove the bracket from the rear console.
  5. Shift the selector lever to the P position.

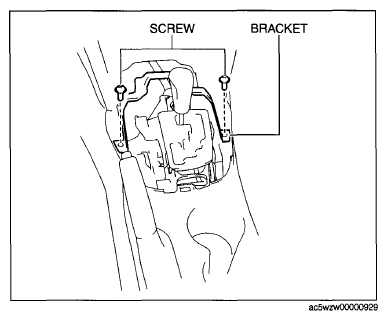

    Fig 1: Identifying Bracket And Screws
    G09075601
  6. Pull out the safety lock in the direction of the arrow (1) shown in the figure, pull out the lock piece in the direction of the arrow (2) shown in the figure, and release the lock. (See SELECTOR CABLE (SELECTOR LEVER SIDE) INSTALLATION NOTE ).
    Fig 2: Removing Selector Cable (Selector Lever Side)
    G09075591
  7. Set the manual shaft to the P position.
    Fig 3: Setting Manual Shaft To P Position
    G09075603

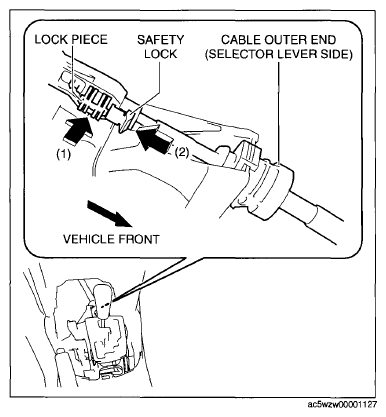

  8. Press in the lock piece in the direction of the arrow (1) shown in the figure, press in the safety lock in the direction of the arrow (2) shown in the figure, and lock it.
  9. Perform the procedure in the reverse order of Step  1 to  4 to install the removed part.
  10. Perform the selector lever inspection. (See SELECTOR LEVER INSPECTION ).
    Fig 4: Removing Selector Cable (Selector Lever Side)
    G09075604
