Drive Plate Removal/Installation: Notes

  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL] ). (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL] ).
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

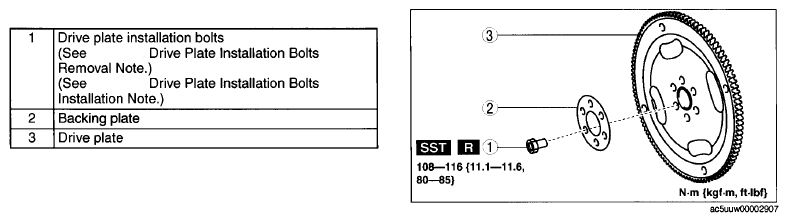

    Fig 1: Drive Plate, Backing Plate And Bolts With Torque Specifications
    G09075535
