Tie-Rod End Replacement

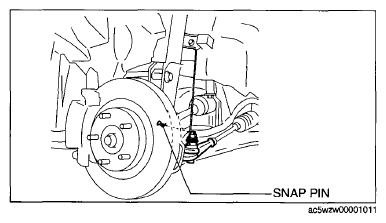

Remove the snap pin.
Loosen the tie-rod end locknut.

Fig 1: Identifying Tie-Rod End Locknut

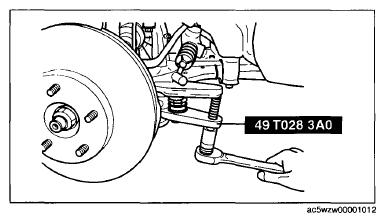

Detach the tie-rod end from the steering knuckle using the SST .
Remove the tie-rod end locknut.

Fig 2: Removing Tie-Rod End From Steering Knuckle Using SST

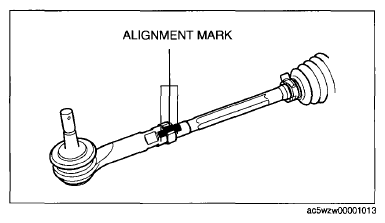

Place alignment marks as shown in the figure for proper installation.

Fig 3: Placing Alignment Marks For Proper Installation

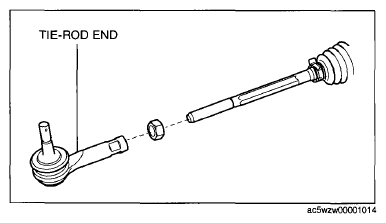

Remove the tie-rod end.

Fig 4: Identifying Tie-Rod End
Align the alignment marks made before removing the tie-rod end, and then install a new tie-rod end to the tie rod.
- If there are no alignment marks, go to the following procedure.

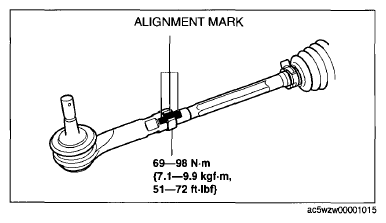

  Fig 5: Aligning Alignment Marks For Proper Installation With Torque Specifications

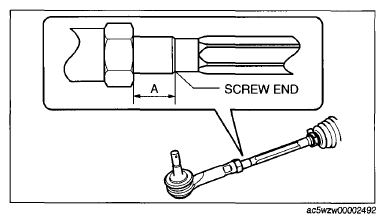

Adjust dimension A shown in the figure to the standard, and assemble.
Standard Dimension A

10.1-23.1 mm {0.398-0.909 in}

Fig 6: Identifying Standard Adjustment Dimension
Install the tie-rod end to the steering knuckle.
Install a new snap pin.
After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT ).

Fig 7: Steering Knuckle Tie-Rod End Snap Pin With Torque Specifications
