Steering Gear And Linkage Disassembly
>>
Mounting Rubber Disassembly Note
Mounting Rubber Disassembly Note
Remove the mounting rubber from the gear housing using the
SSTs
and a press.

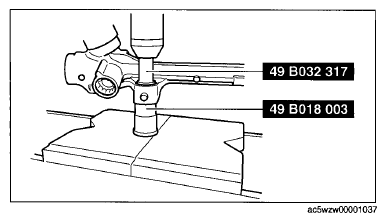

Fig 1: Removing Mounting Rubber From Gear Housing Using SST
