Intermediate Shaft Removal Note

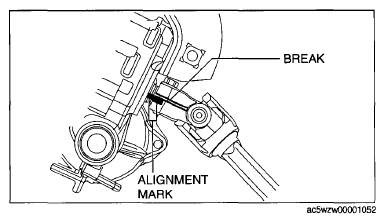

  1. Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the figure.
    Fig 1: Placing Alignment Mark Across Break Between Steering Column And Yoke
    G09075668
  2. Place alignment marks on the steering gear (pinion) and the intermediate shaft as shown in the figure.
    Fig 2: Placing Alignment Marks On Steering Gear (Pinion) And Intermediate Shaft
    G09075669

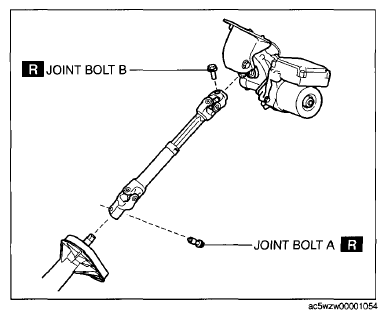

  3. Remove joint bolt A, then joint bolt B.
  4. Remove the intermediate shaft.
    Fig 3: Identifying Intermediate Shaft Joint Bolt (A And B)
    G09075670
